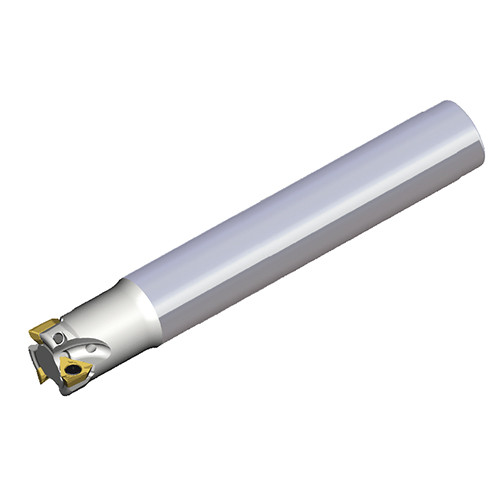

Taegutec 3P-TE90-212-11-04-L

Product Code: 6321667

$490.94$446.31 Ex. GST

Product Code: 6321667 SKU 6321667 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° End mills with high positive three helical cutting edges inserts of 3PKT 04

Additional information

Weight 0.1500 kg
Dimensions
barcode
Additional Information

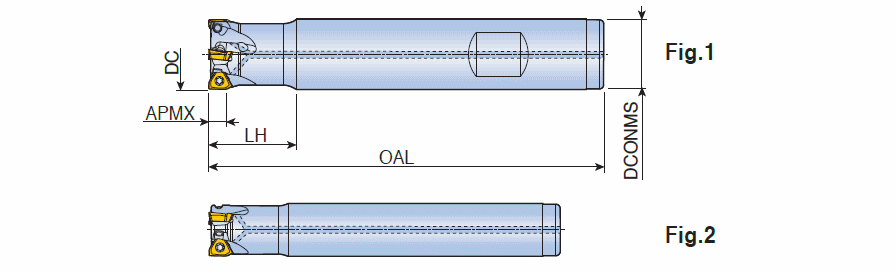

Cutting Diameter (DC/DCX): 12 mm
Connection Diameter Machine Side (DCONMS): 11 mm
Cutting Diameter (DC): 12 mm
Master Insert Identification (MIID): 3PKT 040202R-M
Cutting Item Count (CICT): 2
Head Length (LH): 11 mm
Depth of Cut Maximum (APMX): 3.5 mm
Measurement Type: Metric
Overall Length (OAL): 120 mm
Body Material: Steel
Shank Type: Round
Unit: M
Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting

Brand

Taegutec
