Taegutec 3P TE90-221-20-10-L250-C

Product Code: 6158352

$578.34$525.76 Ex. GST

Product Code: 6158352 SKU 6158352 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

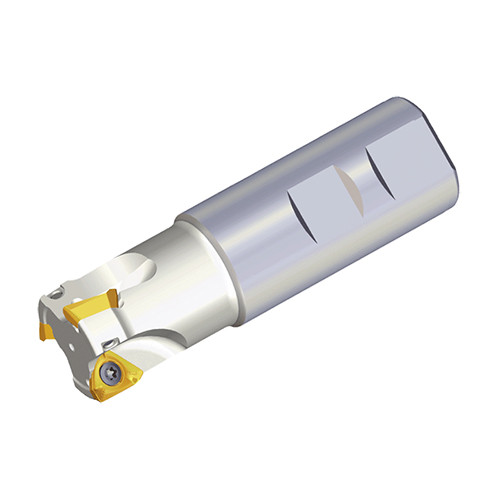

Taegutec 3P TE90-221-20-10-L250-C

Taegutec 3P TE90-221-20-10-L250-C - Image 2

Taegutec 3P TE90-221-20-10-L250-C - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° End mills with high positive three helical cutting edges inserts of 3PK(H)T 10

Additional information

Weight	0.6150 kg
Dimensions
barcode

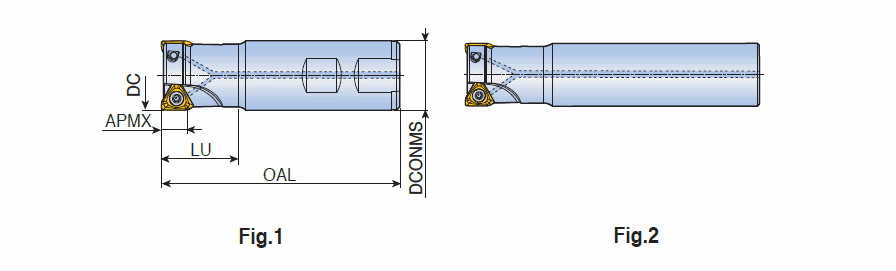

Additional Information	Cutting Diameter (DC/DCX): 21 mm Connection Diameter Machine Side (DCONMS): 20 mm Cutting Diameter (DC): 21 mm Master Insert Identification (MIID): 3PKT 100408R-M Cutting Item Count (CICT): 2 Usable Length (LU): 40 mm Depth of Cut Maximum (APMX): 7 mm Measurement Type: Metric Overall Length (OAL): 250 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting

Brand

Taegutec
