Taegutec 3P-TE90-312-S08-04

Product Code: 6320575

$483.76$439.78 Ex. GST

Product Code: 6320575 SKU 6320575 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

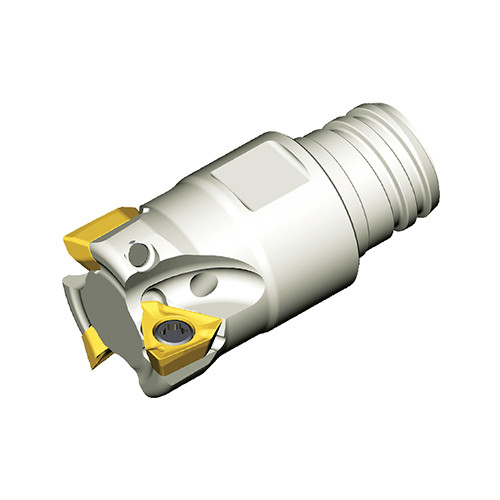

90° Modular end mills with MAXIRUSH adaptation & high positive three helical cutting edges of 3PKT 04 inserts

Weight	0.0850 kg
Dimensions
barcode

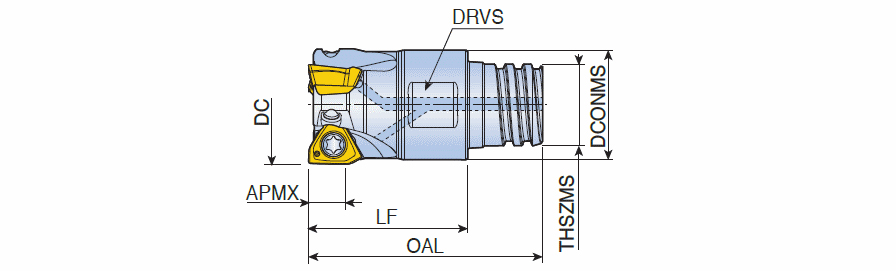

Additional Information	Cutting Diameter (DC/DCX): 12 mm Connection Diameter Machine Side (DCONMS): 11.5 mm Cutting Diameter (DC): 12 mm Master Insert Identification (MIID): 3PKT 040202R-M Cutting Item Count (CICT): 3 Functional Length (LF): 16 mm Depth of Cut Maximum (APMX): 3.5 mm Measurement Type: Metric Overall Length (OAL): 23.5 mm Body Material: Steel Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Unit: M
