Taegutec 3P TE90-320-W20-06

Product Code: 3113320

$511.97$465.43 Ex. GST

Product Code: 3113320 SKU 3113320 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

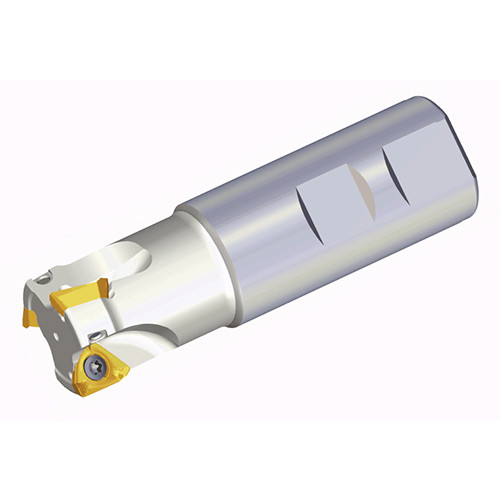

90° End mills with high positive three helical cutting edges inserts of 3PK(H)T 06

Weight	0.2700 kg
Dimensions
barcode

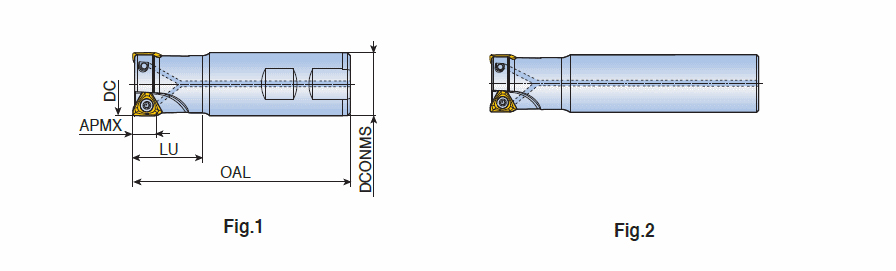

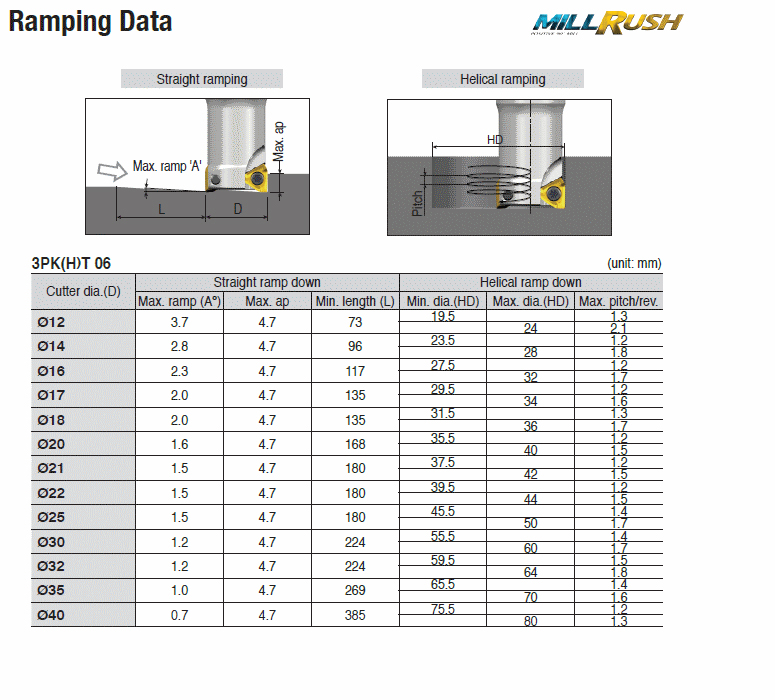

Additional Information	Cutting Diameter (DC/DCX): 20 mm Connection Diameter Machine Side (DCONMS): 20 mm Cutting Diameter (DC): 20 mm Master Insert Identification (MIID): 3PKT 060304R-M Cutting Item Count (CICT): 3 Head Length (LH): 25 mm Depth of Cut Maximum (APMX): 4.7 mm Measurement Type: Metric Overall Length (OAL): 105 mm Body Material: Steel Shank Type: Weldon Unit: M Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting
