Taegutec 3P TE90-332-32-10-L250-C

Product Code: 3113012

$819.41$744.92 Ex. GST

Product Code: 3113012 SKU 3113012 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

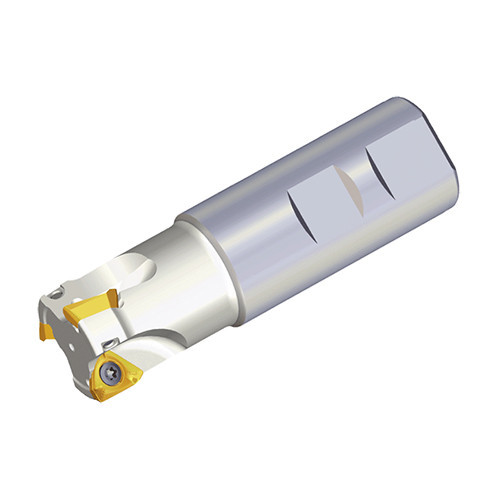

90° End mills with high positive three helical cutting edges inserts of 3PK(H)T 10

Weight	1.4830 kg
Dimensions
barcode

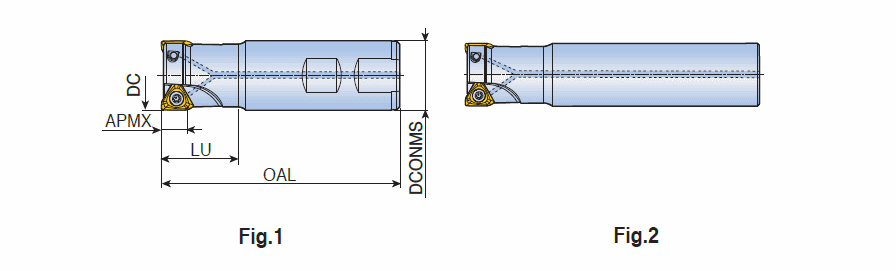

Additional Information	Cutting Diameter (DC/DCX): 32 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 32 mm Master Insert Identification (MIID): 3PKT 100408R-M Cutting Item Count (CICT): 3 Usable Length (LU): 60 mm Depth of Cut Maximum (APMX): 7 mm Measurement Type: Metric Overall Length (OAL): 250 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting
