Taegutec 3P TE90-440-32-10-L200

Product Code: 3110634

$744.25$676.59 Ex. GST

Product Code: 3110634 SKU 3110634 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

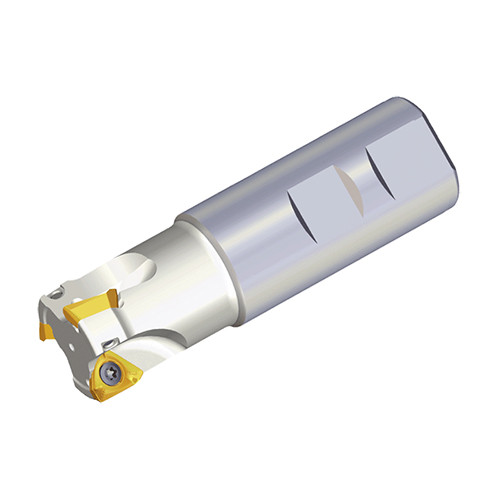

90° End mills with high positive three helical cutting edges inserts of 3PK(H)T 10

Additional information

Weight 1.3350 kg
Dimensions
barcode
Additional Information

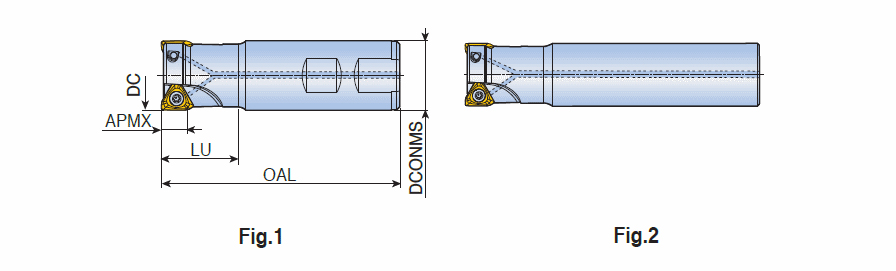

Cutting Diameter (DC/DCX): 40 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Cutting Diameter (DC): 40 mm
Master Insert Identification (MIID): 3PKT 100408R-M
Cutting Item Count (CICT): 4
Usable Length (LU): 40 mm
Depth of Cut Maximum (APMX): 7 mm
Measurement Type: Metric
Overall Length (OAL): 200 mm
Body Material: Steel
Shank Type: Round
Unit: M

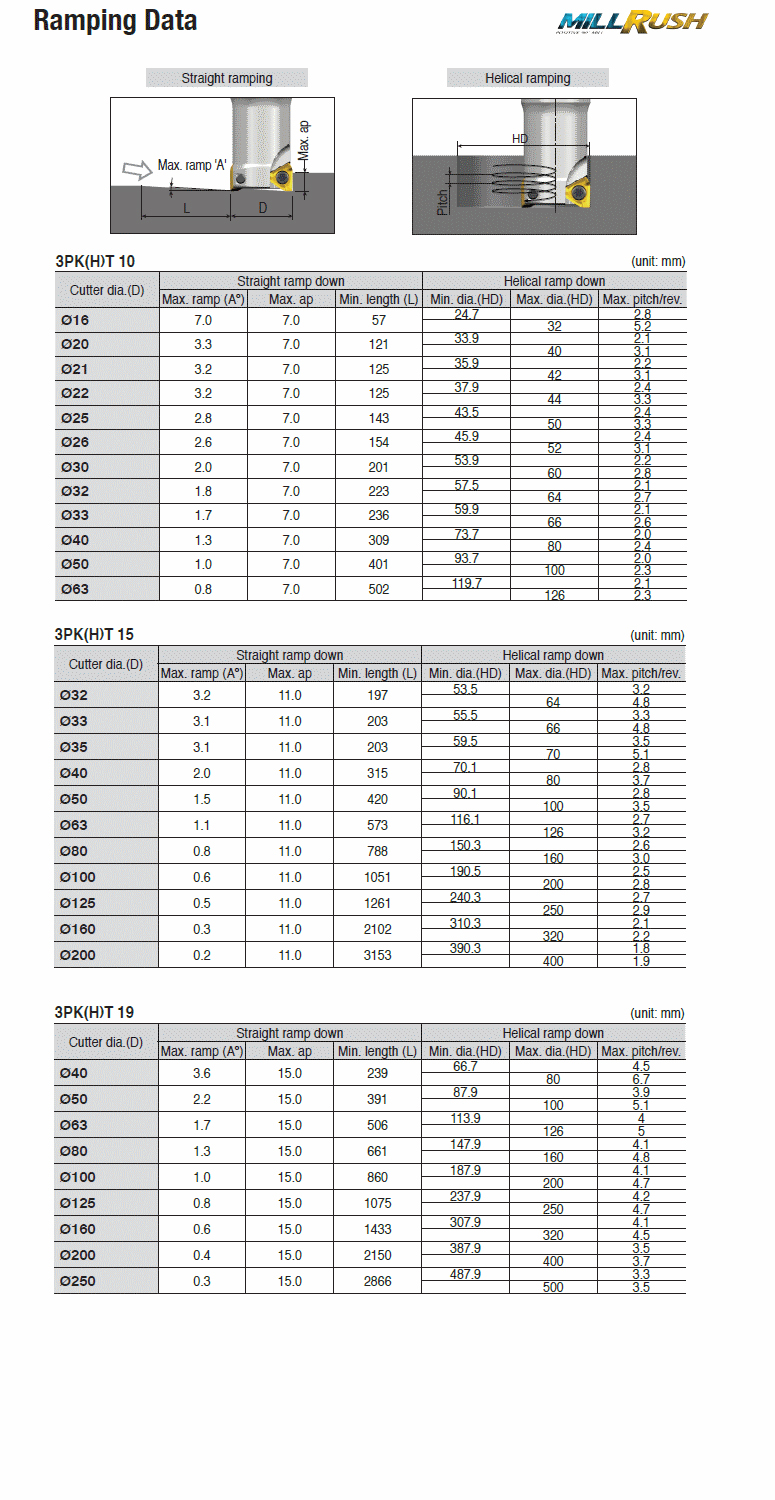

Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting

Brand

Taegutec
