Taegutec 3P TE90-632-M16-06

Product Code: 3113336

$739.13$671.94 Ex. GST

Product Code: 3113336 SKU 3113336 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

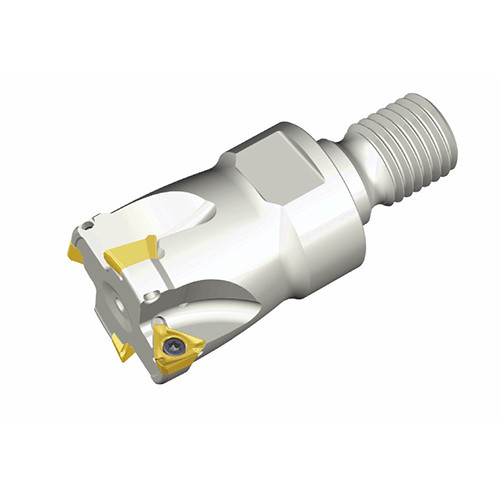

90° Modular end mills with T-FLEXTEC adaptation & high positive three helical cutting edges of 3PK(H)T 06 inserts

Weight	0.2760 kg
Dimensions
barcode

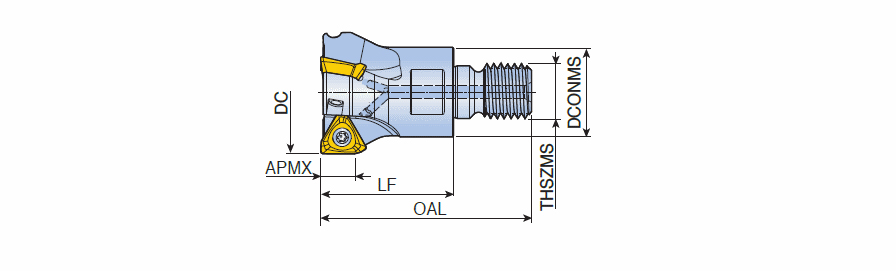

Additional Information	Cutting Diameter (DC/DCX): 32 mm Master Insert Identification (MIID): 3PKT 060304R-M Cutting Diameter (DC): 32 mm Head Length (LH): 43 mm Cutting Item Count (CICT): 6 Connection Thread Nominal Size Machine Side (THSZMS): M16 Depth of Cut Maximum (APMX): 4.7 mm Measurement Type: Metric Overall Length (OAL): 68 mm Body Material: Steel Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Unit: M
