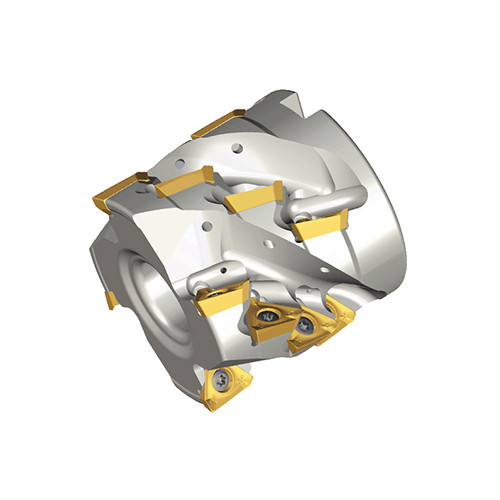

Extended flute shell mills with 3PKT 19 inserts of positive 3 helical cutting edges
Additional information
Weight
4.7150 kg
Dimensions
barcode
Additional Information
Application:, Shouldering, Slotting, Number of Teeth: 24

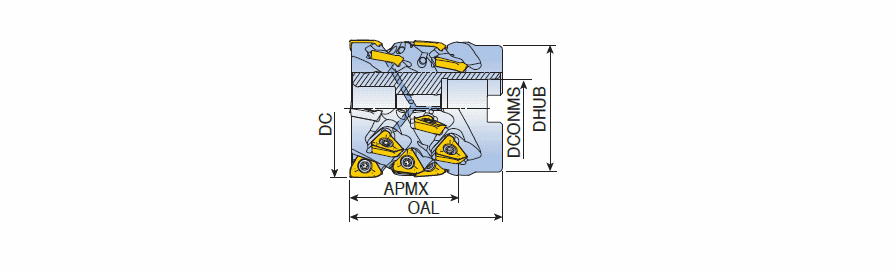

Depth of Cut Maximum (APMX): 83 mm
Master Insert Identification (MIID): 3PKT 190608R-M
Cutting Diameter (DC): 100 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 40 mm
Body Material: Steel
Flute Count (NOF): 4
Unit: M
Overall Length (OAL): 110 mm
