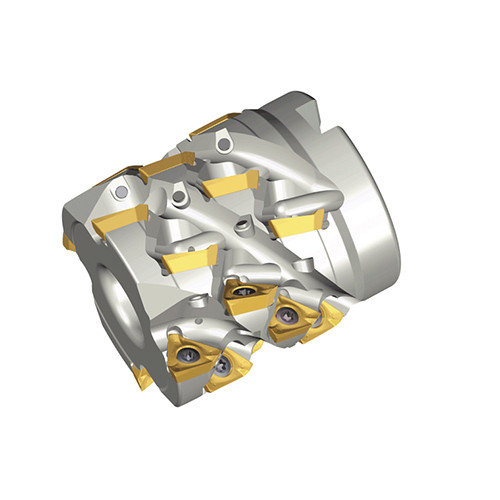

Extended flute shell mills with 3PKT 15 inserts of positive 3 helical cutting edges
Additional information
Weight
1.0750 kg
Dimensions
barcode
Additional Information
Application:, Shouldering, Slotting, Number of Teeth: 12

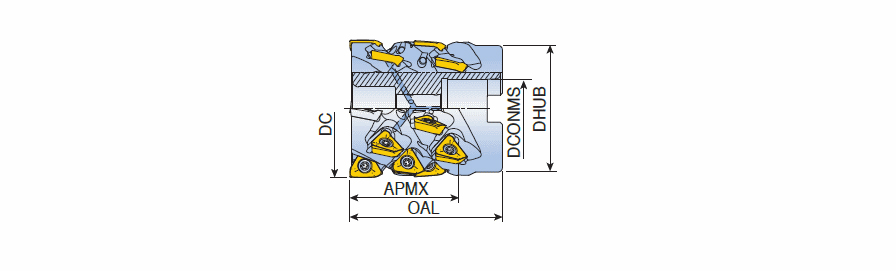

Depth of Cut Maximum (APMX): 40 mm
Master Insert Identification (MIID): 3PKT 150508R-M
Cutting Diameter (DC): 50 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 22 mm
Body Material: Steel
Flute Count (NOF): 3
Unit: M
Overall Length (OAL): 65 mm
