Home » Shop » CUTTING TOOLS » Carbide » MILLING CUTTER » Taegutec 3P TF90-12160-40R-19

Taegutec 3P TF90-12160-40R-19

Product Code: 3108743

$2,530.00$2,300.00 Ex. GST

Product Code: 3108743 SKU 3108743 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

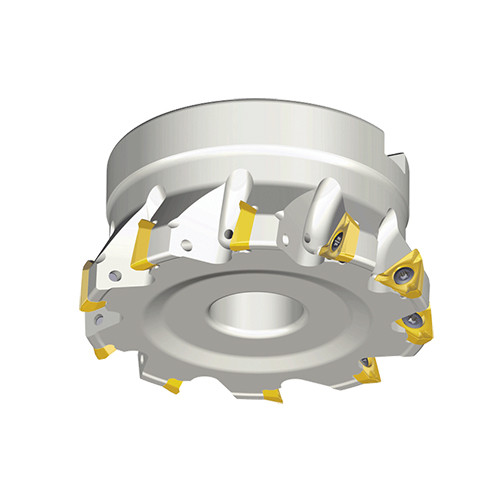

Taegutec 3P TF90-12160-40R-19

Taegutec 3P TF90-12160-40R-19 - Image 2

Taegutec 3P TF90-12160-40R-19 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° Face mills with high positive three helical cutting edges inserts of 3PK(H)T 19

Additional information

Weight	5.2300 kg
Dimensions
barcode

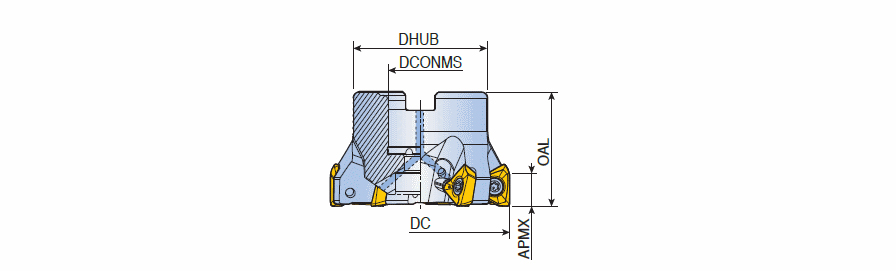

Additional Information	Cutting Diameter (DC/DCX): 160 mm Hub Diameter (DHUB): 110 mm Cutting Diameter (DC): 160 mm Master Insert Identification (MIID): 3PKT 190608R-M Cutting Item Count (CICT): 12 Body Material: Steel Depth of Cut Maximum (APMX): 15 mm Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Overall Length (OAL): 15 mm Unit: M

Brand

Taegutec
