Taegutec 3P TF90-15160-40R-15

Product Code: 3112236

$2,719.16$2,471.96 Ex. GST

Product Code: 3112236 SKU 3112236 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

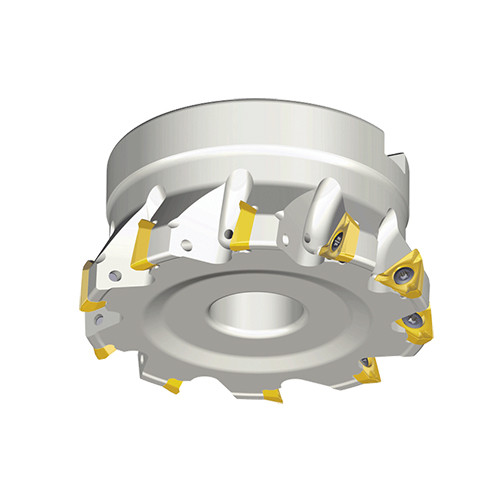

Taegutec 3P TF90-15160-40R-15

Taegutec 3P TF90-15160-40R-15 - Image 2

Taegutec 3P TF90-15160-40R-15 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° Face mills with high positive three helical cutting edges inserts of 3PK(H)T 15

Additional information

Weight	5.3800 kg
Dimensions
barcode

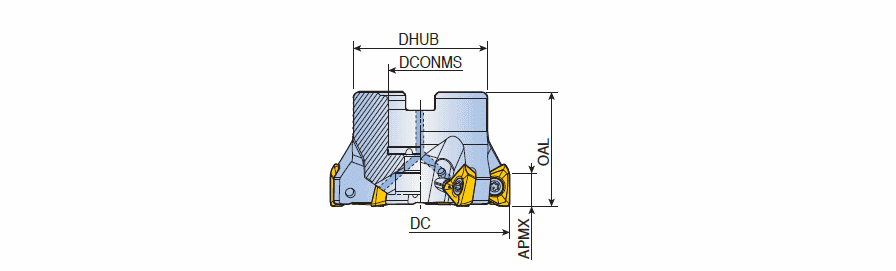

Additional Information	Cutting Diameter (DC/DCX): 160 mm Hub Diameter (DHUB): 110 mm Cutting Diameter (DC): 160 mm Master Insert Identification (MIID): 3PKT 150508R-M Cutting Item Count (CICT): 15 Body Material: Steel Depth of Cut Maximum (APMX): 11 mm Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Overall Length (OAL): 11 mm Unit: M

Brand

Taegutec
