Taegutec 3P TF90-6125-38.1R-19

Product Code: 6101880

$1,629.56$1,481.42 Ex. GST

Product Code: 6101880 SKU 6101880 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

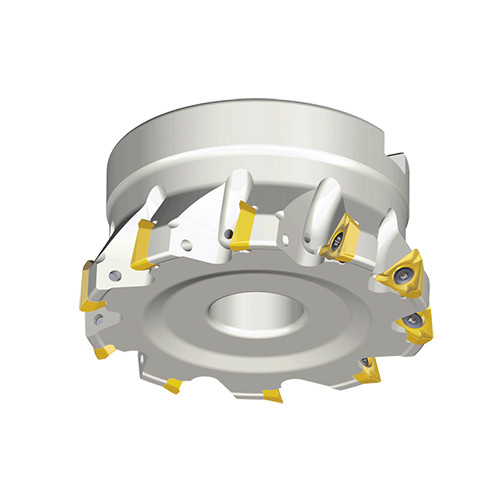

90° Face mills with high positive three helical cutting edges inserts of 3PK(H)T 19 & inch bores

Additional information

Weight 3.5520 kg
Dimensions
barcode
Additional Information

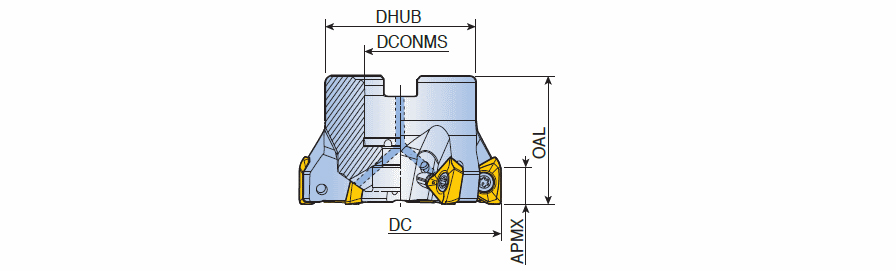

Cutting Diameter (DC/DCX): 125 mm
Hub Diameter (DHUB): 80 mm
Cutting Diameter (DC): 125 mm
Master Insert Identification (MIID): 3PKT 190608R-M
Cutting Item Count (CICT): 6
Body Material: Steel
Depth of Cut Maximum (APMX): 15 mm
Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 38.1 mm
Measurement Type: Metric
Overall Length (OAL): 15 mm
Unit: M

Brand

Taegutec
