Taegutec 3P TF90-640-16R-10

Product Code: 6162647

$810.77$737.06 Ex. GST

Product Code: 6162647 SKU 6162647 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Taegutec 3P TF90-640-16R-10

Taegutec 3P TF90-640-16R-10 - Image 2

Taegutec 3P TF90-640-16R-10 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

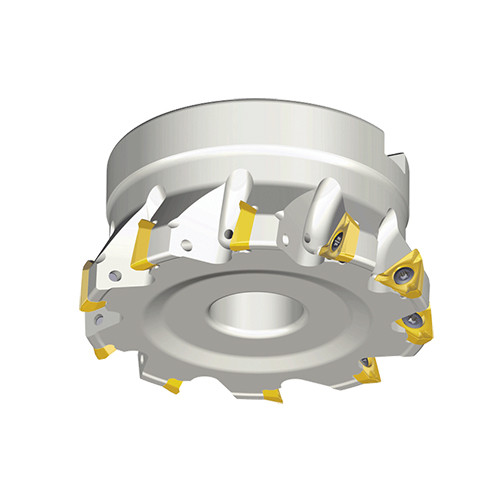

90° Face mills with high positive three helical cutting edges inserts of 3PK(H)T 10

Additional information

Weight	0.7150 kg
Dimensions
barcode

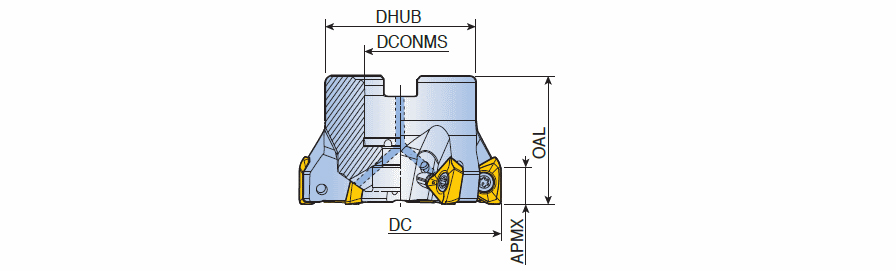

Additional Information	Cutting Diameter (DC/DCX): 40 mm Hub Diameter (DHUB): 38 mm Cutting Diameter (DC): 40 mm Master Insert Identification (MIID): 3PKT 100408R-M Cutting Item Count (CICT): 6 Body Material: Steel Depth of Cut Maximum (APMX): 7 mm Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 16 mm Measurement Type: Metric Overall Length (OAL): 7 mm Unit: M

Brand

Taegutec
