Taegutec 3P TF90-735-16R-06

Product Code: 3113341

$743.33$675.75 Ex. GST

Product Code: 3113341 SKU 3113341 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

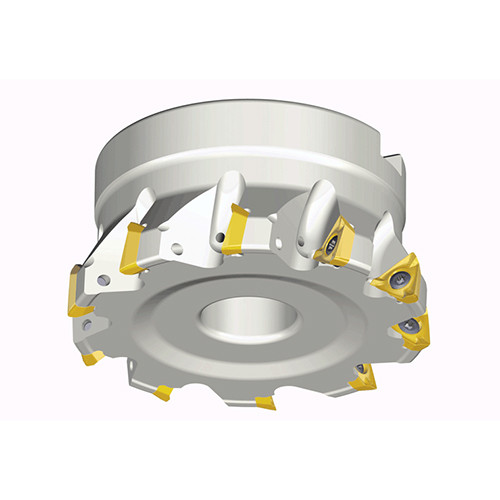

90° Face mills with high positive three helical cutting edges inserts of 3PK(H)T 06

Additional information

Weight 0.6230 kg
Dimensions
barcode

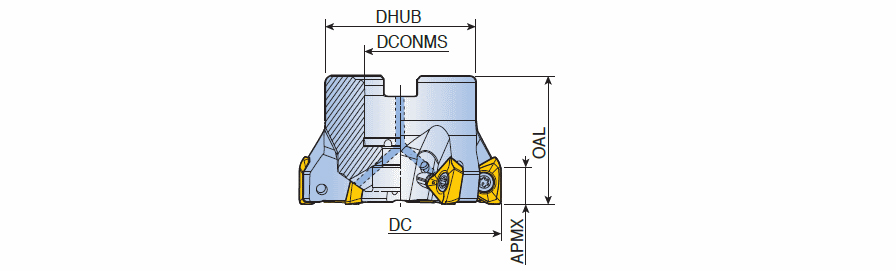

Additional Information

Cutting Diameter (DC): 35 mm
Master Insert Identification (MIID): 3PKT 060304R-M
Cutting Item Count (CICT): 7
Body Material: Steel
Depth of Cut Maximum (APMX): 4.7 mm
Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 16 mm
Measurement Type: Metric
Overall Length (OAL): 35 mm
Unit: M

Brand

Taegutec
