Taegutec 3P TF90-840-22R-06

Product Code: 3113342

$848.65$771.50 Ex. GST

Product Code: 3113342 SKU 3113342 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

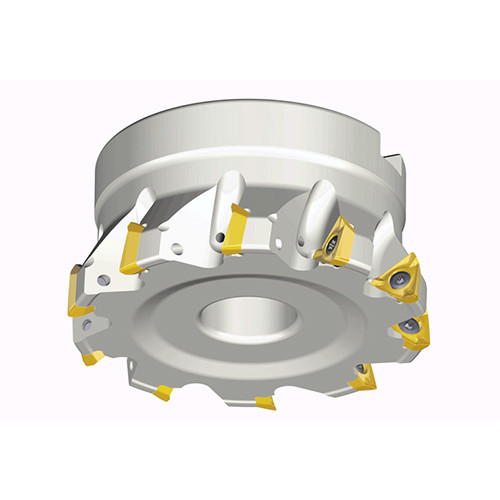

90° Face mills with high positive three helical cutting edges inserts of 3PK(H)T 06

Weight	0.7350 kg
Dimensions
barcode

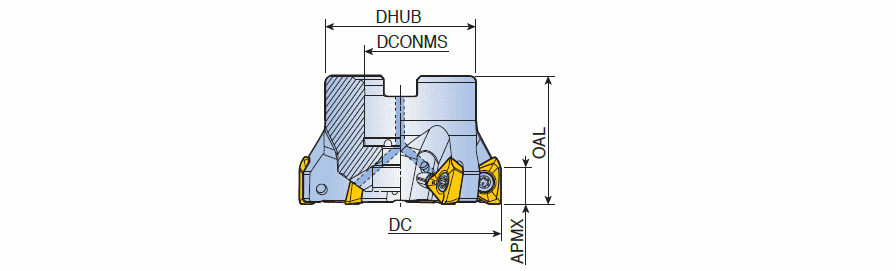

Additional Information	Cutting Diameter (DC): 40 mm Master Insert Identification (MIID): 3PKT 060304R-M Cutting Item Count (CICT): 8 Body Material: Steel Depth of Cut Maximum (APMX): 4.7 mm Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 22 mm Measurement Type: Metric Overall Length (OAL): 40 mm Unit: M
