Taegutec 3P TF90-880-27R-15

Product Code: 3110650

$1,389.63$1,263.30 Ex. GST

Product Code: 3110650 SKU 3110650 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

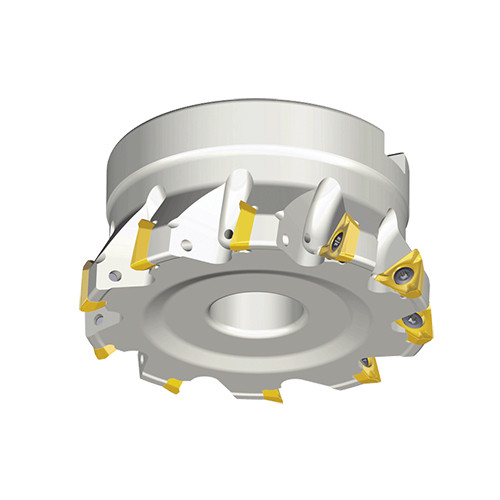

90° Face mills with high positive three helical cutting edges inserts of 3PK(H)T 15

Additional information

Weight 1.4600 kg
Dimensions
barcode
Additional Information

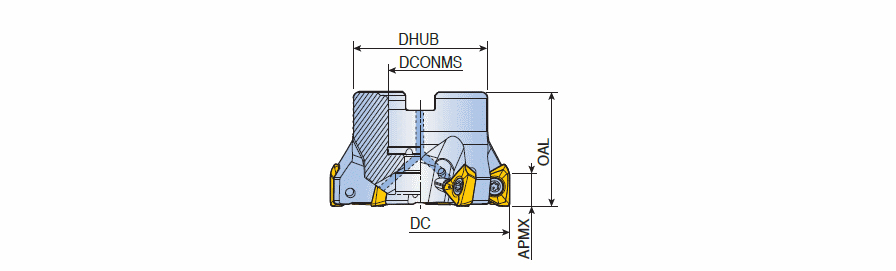

Cutting Diameter (DC/DCX): 80 mm
Hub Diameter (DHUB): 58 mm
Cutting Diameter (DC): 80 mm
Master Insert Identification (MIID): 3PKT 150508R-M
Cutting Item Count (CICT): 8
Body Material: Steel
Depth of Cut Maximum (APMX): 11 mm
Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 27 mm
Measurement Type: Metric
Overall Length (OAL): 11 mm
Unit: M

Brand

Taegutec
