Taegutec 3PHT 100404R-M TT9080

Product Code: 5616336

$29.16$26.51 Ex. GST

Product Code: 5616336 SKU 5616336 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

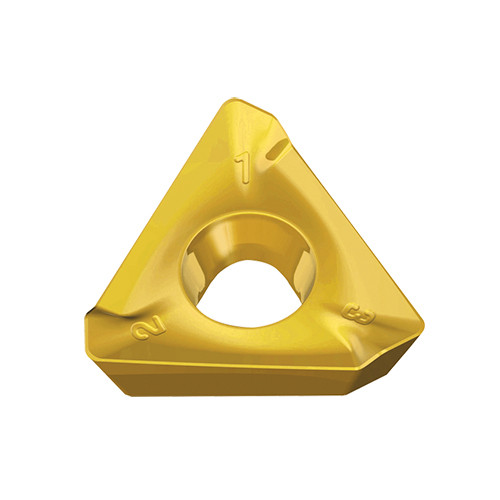

High positive inserts 3PHT with three helical cutting edges for 90° shoulders & general machining

Weight	0.0028 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.12 mm/tooth Corner Radius (RE): 0.4 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 6 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Inscribed Circle Diameter (IC): 6.9 mm Measurement Type: Metric Insert Thickness (S): 4 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
