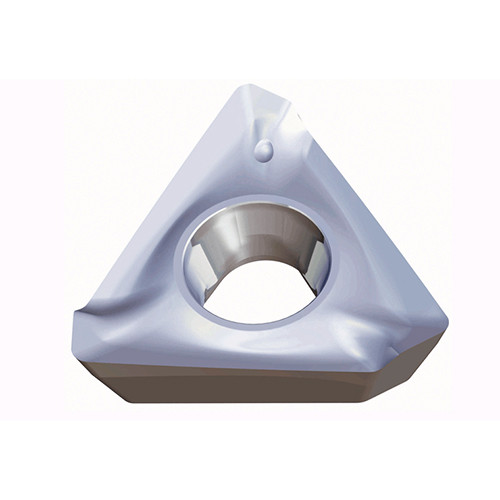

Taegutec 3PHT 150508R-AL K10

Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10
Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.5 mm/tooth
Cutting Edge Length (L): 11 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.8 mm
Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth
Depth of Cut Maximum (APMX): 9 mm
Measurement Type: Metric
Inscribed Circle Diameter (IC): 10.7 mm
Body Material: Carbide
Insert Thickness (S): 5 mm
Unit: M
Coating: Uncoated
