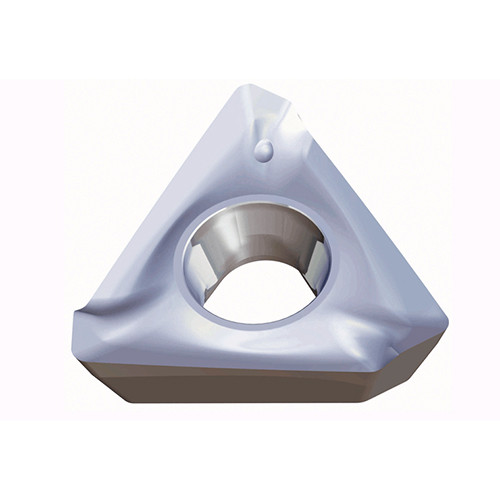

Taegutec 3PHT 190608R-AL K10

Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10
Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.5 mm/tooth
Cutting Edge Length (L): 15 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.8 mm
Minimum Feed per Tooth (fz(min)): 0.15 mm/tooth
Depth of Cut Maximum (APMX): 12 mm
Measurement Type: Metric
Inscribed Circle Diameter (IC): 13.5 mm
Body Material: Carbide
Insert Thickness (S): 6 mm
Unit: M
Coating: Uncoated
