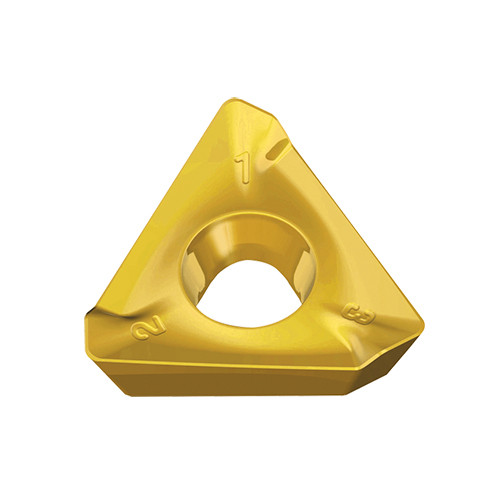

Taegutec 3PKT 060302R-M TT9080

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080
Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.1 mm/tooth
Cutting Edge Length (L): 4.7 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.2 mm
Minimum Feed per Tooth (fz(min)): 0.04 mm/tooth
Depth of Cut Maximum (APMX): 4 mm
Measurement Type: Metric
Inscribed Circle Diameter (IC): 5.3 mm
Body Material: Carbide
Insert Thickness (S): 2.8 mm
Unit: M
Coating: TiAlN+TiN
