Taegutec 3PKT 100408R-ML TT9080

Description

High positive inserts 3PKT with 3 helical cutting edges for 90° shoulders & exotic materials & light machining from sharp geometry

Weight	0.0027 kg
barcode

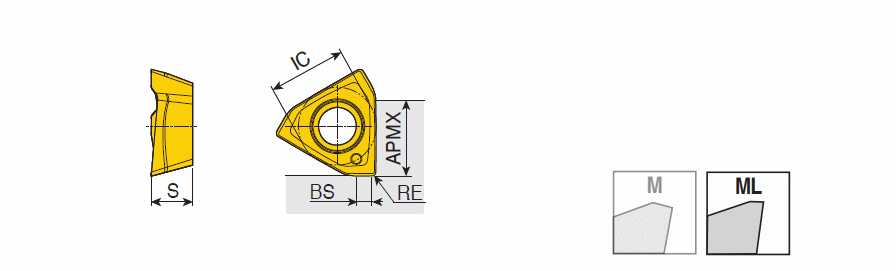

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.1 mm/tooth Cutting Edge Length (L): 7 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.04 mm/tooth Depth of Cut Maximum (APMX): 6 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 6.9 mm Body Material: Carbide Insert Thickness (S): 4 mm Unit: M Coating: TiAlN+TiN
