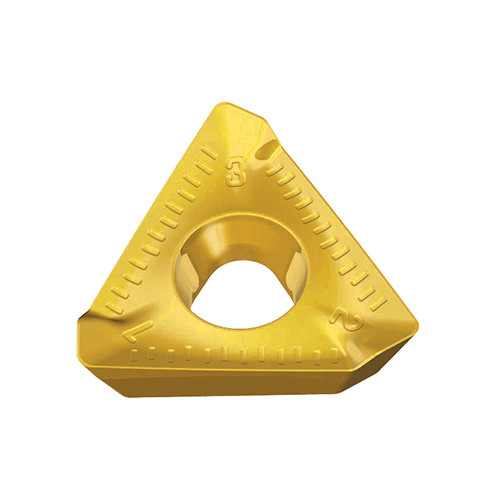

Taegutec 3PKT 150508R-ML TT8020

Description

High positive inserts 3PKT with 3 helical cutting edges for 90° shoulders & exotic materials & light machining from sharp geometry

Weight	0.0062 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8020 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.12 mm/tooth Cutting Edge Length (L): 11 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 9 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 10.7 mm Body Material: Carbide Insert Thickness (S): 5 mm Unit: M Coating: TiCN
