Taegutec 3PKT 150508R-SM3 TT8080

Product Code: 5616670

$28.41$25.83 Ex. GST

Product Code: 5616670 SKU 5616670 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

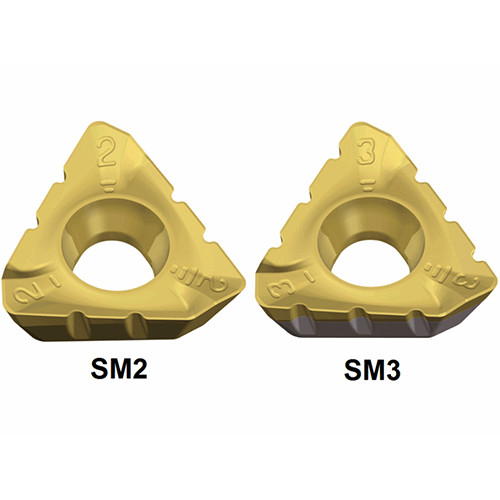

Chip splitter inserts of 3PKT with high positive and three helical cutting edges for 90° shoulders

Weight	0.0053 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8080 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.17 mm/tooth Cutting Edge Length (L): 11 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Depth of Cut Maximum (APMX): 9 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 10.7 mm Body Material: Carbide Insert Thickness (S): 5 mm Unit: M Coating: TiAlN+TiN
