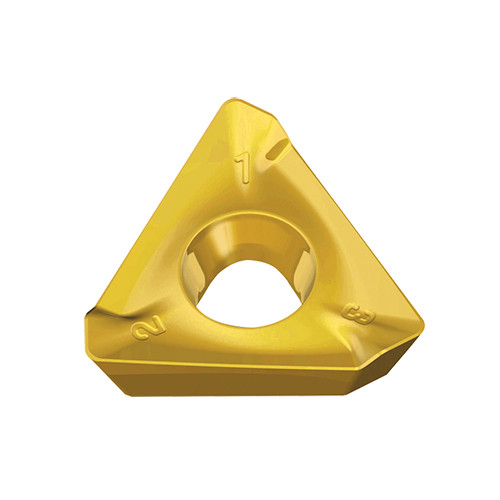

Taegutec 3PKT 190608R-M TT8080

Product Code: 5613491

$31.59$28.72 Ex. GST

Product Code: 5613491 SKU 5613491 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

High positive inserts 3PKT with three helical cutting edges for 90° shoulders & general machining

Weight	0.0126 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8080 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.22 mm/tooth Cutting Edge Length (L): 15 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.09 mm/tooth Depth of Cut Maximum (APMX): 12 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 13.5 mm Body Material: Carbide Insert Thickness (S): 6 mm Unit: M Coating: TiAlN+TiN
