Taegutec 3PKT 190608R-SM2 TT6080

Product Code: 6134908

$34.12$31.02 Ex. GST

Product Code: 6134908 SKU 6134908 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

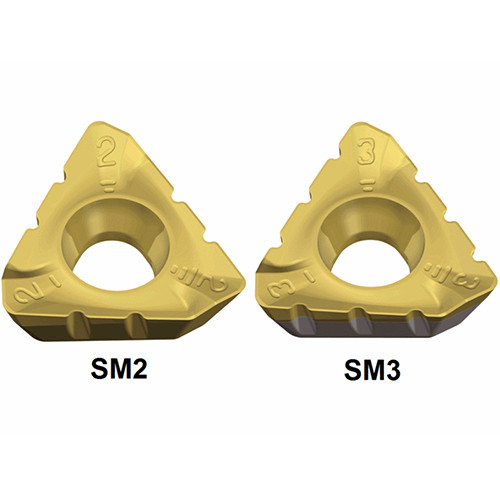

Chip splitter inserts of 3PKT with high positive and three helical cutting edges for 90° shoulders

Weight	0.0132 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.22 mm/tooth Cutting Edge Length (L): 15 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.09 mm/tooth Depth of Cut Maximum (APMX): 12 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 13.5 mm Body Material: Carbide Insert Thickness (S): 6 mm Unit: M Coating: AlTiN+TiN
