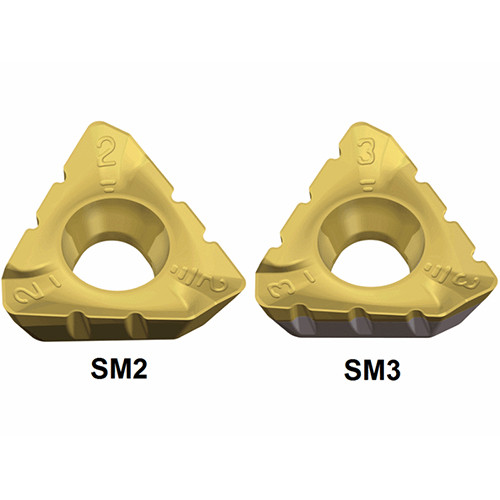

Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec 3PKT 190608R-SM3 TT8525B
$34.12$31.02 Ex. GST
Chip splitter inserts of 3PKT with high positive and three helical cutting edges for 90° shoulders
Applicable Material:, Steel, Stainless Steel, Grade: TT8525B Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.22 mm/tooth Cutting Edge Length (L): 15 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.09 mm/tooth Depth of Cut Maximum (APMX): 12 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 13.5 mm Body Material: Carbide Insert Thickness (S): 6 mm Unit: M Coating: MTCN-Al2O3-TiN
