Taegutec 4N TE90-108-08-04

Product Code: 6311145

$411.08$373.71 Ex. GST

Product Code: 6311145 SKU 6311145 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

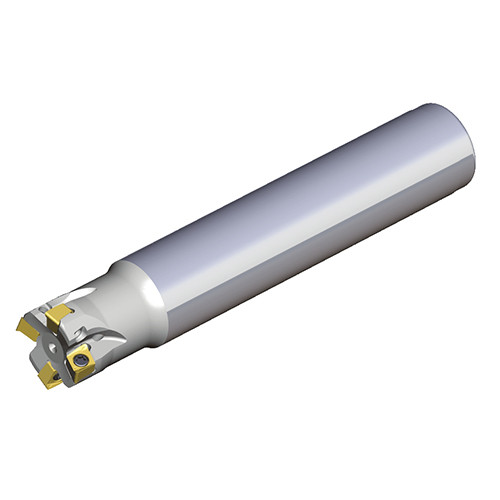

90° End mills with unique four high positive helical cutting edges of double-sided 4NKT 04 inserts and high ramping capability

Weight	0.0750 kg
Dimensions
barcode

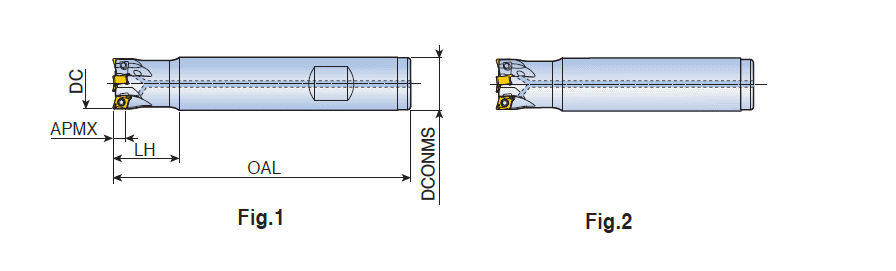

Additional Information	Cutting Diameter (DC/DCX): 8 mm Connection Diameter Machine Side (DCONMS): 8 mm Cutting Diameter (DC): 8 mm Master Insert Identification (MIID): 4NKT 040204R-M Cutting Item Count (CICT): 1 Head Length (LH): 17 mm Depth of Cut Maximum (APMX): 3.5 mm Measurement Type: Metric Overall Length (OAL): 80 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining
