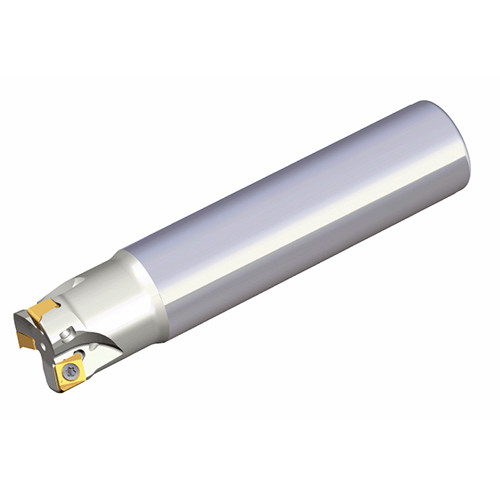

90° End mills with unique 4 high positive helical cutting edges of double-sided 4NK(H)T 06 inserts & high ramping
Additional information
Weight
0.2400 kg
Dimensions
barcode
Additional Information

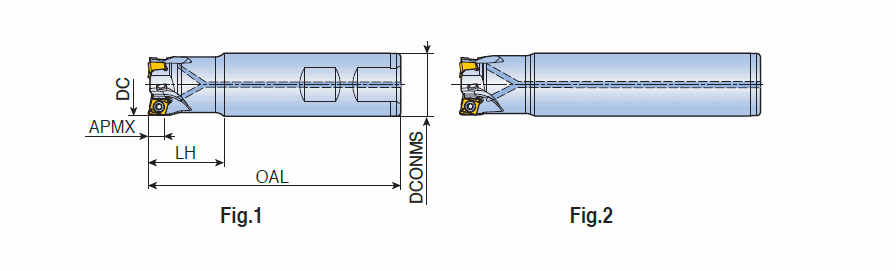

Cutting Diameter (DC/DCX): 16 mm
Connection Diameter Machine Side (DCONMS): 15 mm
Cutting Diameter (DC): 16 mm
Master Insert Identification (MIID): 4NKT 060308R-M
Cutting Item Count (CICT): 2
Head Length (LH): 25 mm
Depth of Cut Maximum (APMX): 6 mm
Measurement Type: Metric
Overall Length (OAL): 150 mm
Body Material: Steel
Shank Type: Round
Unit: M
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining
