Taegutec 4N TE90-220-M10-06

Product Code: 6144184

$537.79$488.90 Ex. GST

Product Code: 6144184 SKU 6144184 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

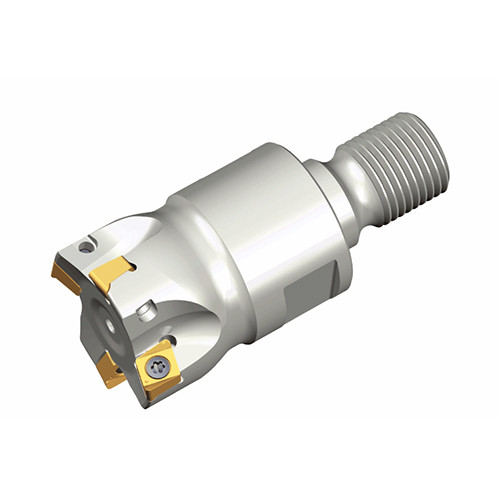

90° Modular end mills with T-FLEXTEC adaptation & unique four high positive helical cutting edges of double-sided 4NK(H)T 06 inserts & high ramping capability

Additional information

Weight	0.1300 kg
Dimensions
barcode

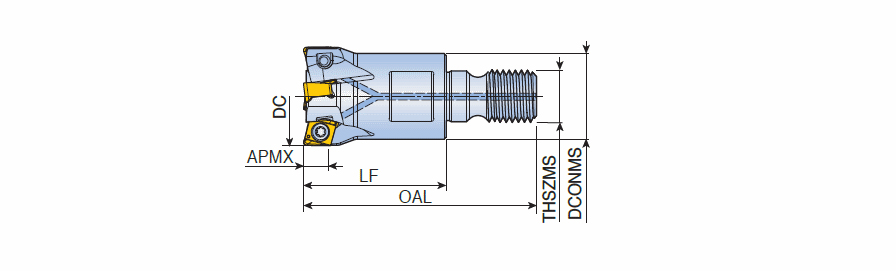

Additional Information	Cutting Diameter (DC/DCX): 20 mm Master Insert Identification (MIID): 4NKT 060308R-M Cutting Diameter (DC): 20 mm Head Length (LH): 35 mm Cutting Item Count (CICT): 2 Connection Thread Nominal Size Machine Side (THSZMS): M10 Depth of Cut Maximum (APMX): 6 mm Measurement Type: Metric Overall Length (OAL): 55 mm Body Material: Steel Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Unit: M
