Taegutec 4N TE90-225-25-11-L200

Product Code: 6178134

$619.45$563.14 Ex. GST

Product Code: 6178134 SKU 6178134 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

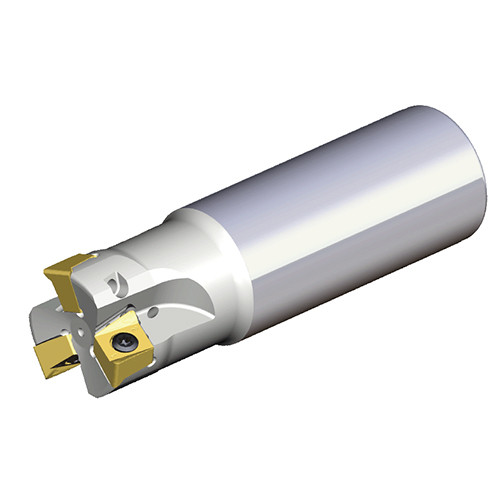

Taegutec 4N TE90-225-25-11-L200

Taegutec 4N TE90-225-25-11-L200 - Image 2

Taegutec 4N TE90-225-25-11-L200 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

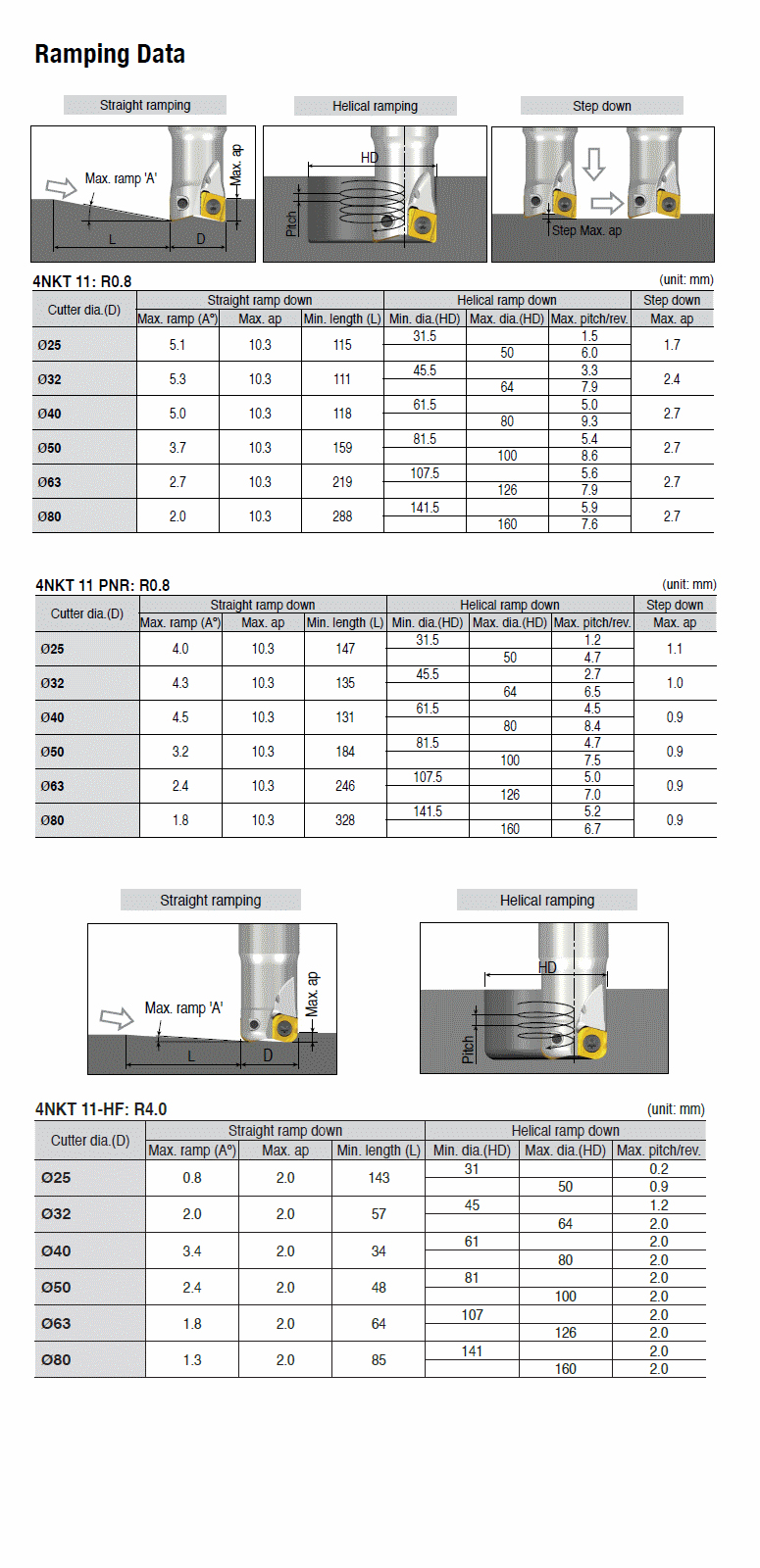

90° End mills with unique four high positive helical cutting edges of double-sided 4NKT 11 inserts & high ramping capability

Additional information

Weight	0.8150 kg
Dimensions
barcode

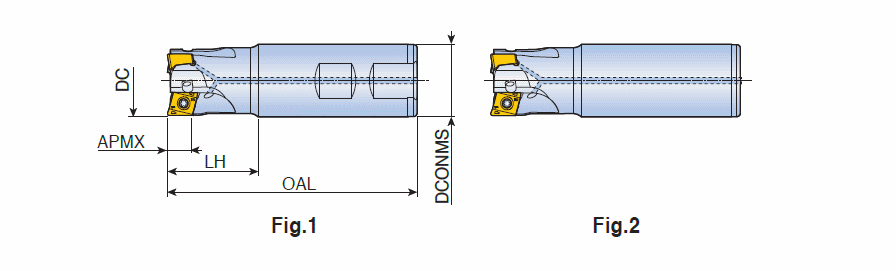

Additional Information	Cutting Diameter (DC/DCX): 25 mm Connection Diameter Machine Side (DCONMS): 25 mm Cutting Diameter (DC): 25 mm Master Insert Identification (MIID): 4NKT 110608R-M Cutting Item Count (CICT): 2 Head Length (LH): 40 mm Depth of Cut Maximum (APMX): 10.5 mm Measurement Type: Metric Overall Length (OAL): 200 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining

Brand

Taegutec
