Taegutec 4N TE90-225-M12-11

Product Code: 6187363

$611.83$556.21 Ex. GST

Product Code: 6187363 SKU 6187363 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

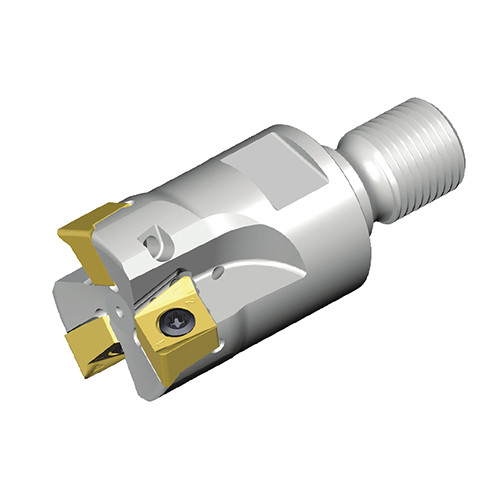

90° Modular end mills with T-FLEXTEC adaptation & unique four high positive helical cutting edges of double-sided 4NKT 11 inserts & high ramping capability

Additional information

Weight	0.1850 kg
Dimensions
barcode

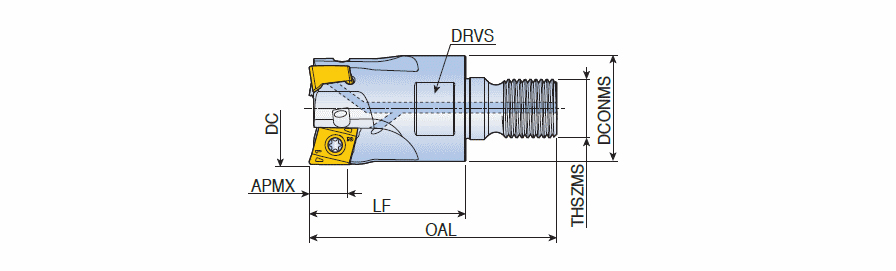

Additional Information	Cutting Diameter (DC/DCX): 25 mm Connection Diameter Machine Side (DCONMS): 21 mm Cutting Diameter (DC): 25 mm Master Insert Identification (MIID): 4NKT 110608R-M Cutting Item Count (CICT): 2 Functional Length (LF): 35 mm Depth of Cut Maximum (APMX): 10.5 mm Measurement Type: Metric Overall Length (OAL): 57 mm Body Material: Steel Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Unit: M
