Taegutec 4N TE90-226-25-09-L200

Product Code: 6259187

$619.45$563.14 Ex. GST

Product Code: 6259187 SKU 6259187 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

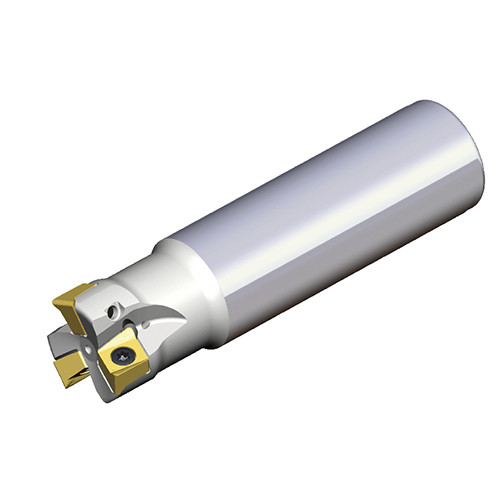

90° End mills with unique four high positive helical cutting edges of double-sided 4NK(H)T 09 inserts and high ramping capability

Weight	0.8450 kg
Dimensions
barcode

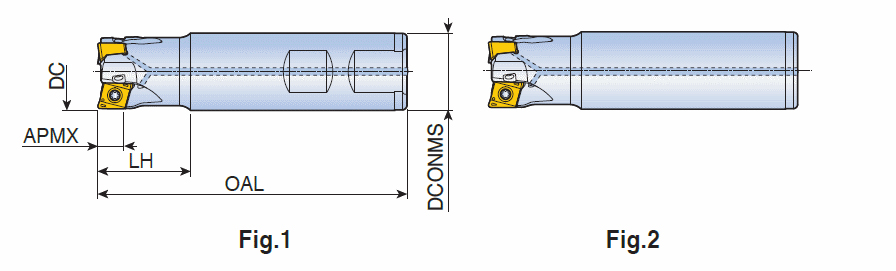

Additional Information	Cutting Diameter (DC/DCX): 26 mm Connection Diameter Machine Side (DCONMS): 25 mm Cutting Diameter (DC): 26 mm Master Insert Identification (MIID): 4NKT 090408R-M Cutting Item Count (CICT): 2 Head Length (LH): 40 mm Depth of Cut Maximum (APMX): 8 mm Measurement Type: Metric Overall Length (OAL): 200 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining
