Taegutec 4N TE90-232-32-14-L250

Product Code: 6187346

$685.65$623.32 Ex. GST

Product Code: 6187346 SKU 6187346 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

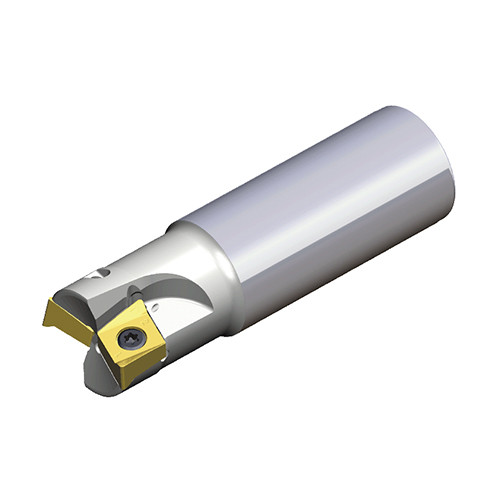

90° End mills with unique four high positive helical cutting edges of double-sided 4NKT 14 inserts and high ramping capability

Weight	1.5700 kg
Dimensions
barcode

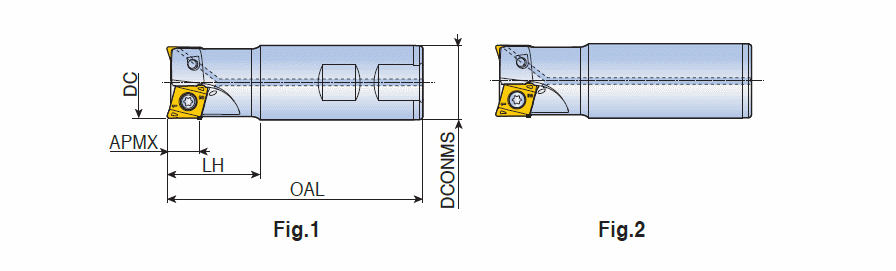

Additional Information	Cutting Diameter (DC/DCX): 32 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 32 mm Master Insert Identification (MIID): 4NKT 140708R-M Cutting Item Count (CICT): 2 Head Length (LH): 40 mm Depth of Cut Maximum (APMX): 13.8 mm Measurement Type: Metric Overall Length (OAL): 250 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining
