Taegutec 4N TE90-232-M16-14

Product Code: 6187349

$706.40$642.18 Ex. GST

Product Code: 6187349 SKU 6187349 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

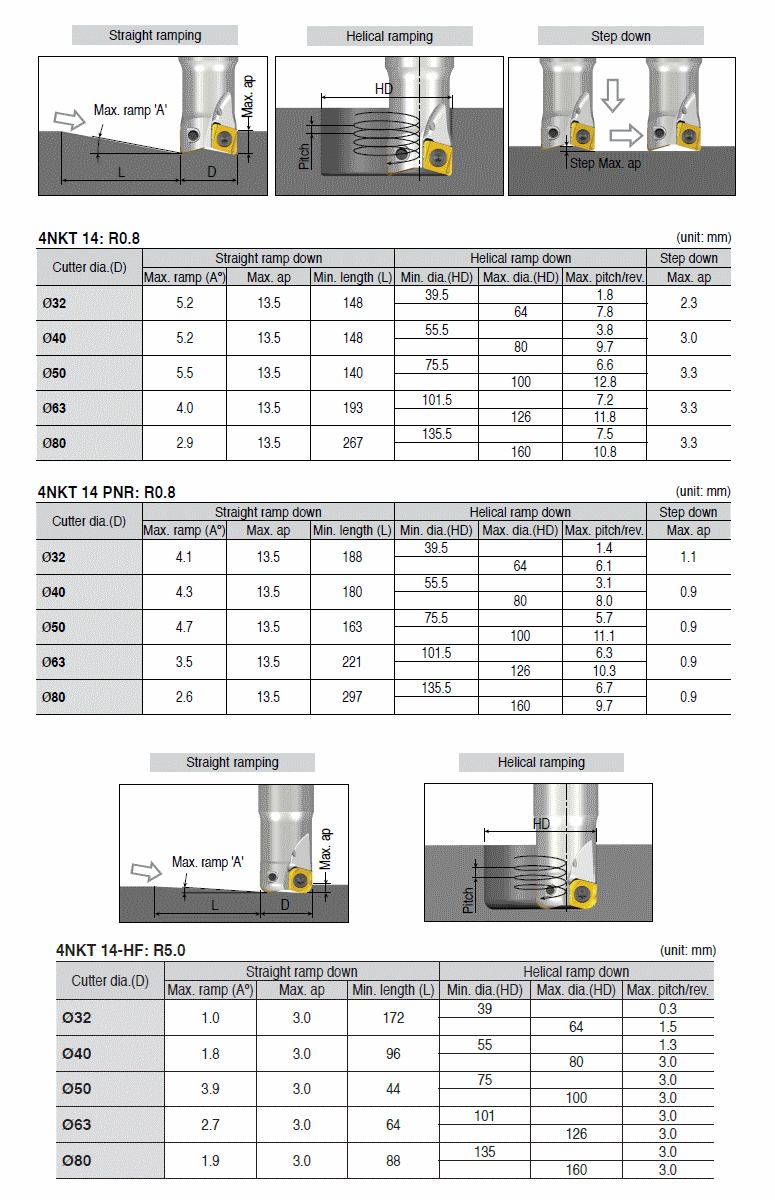

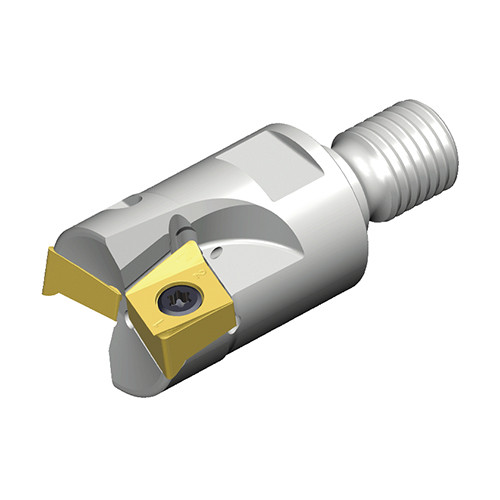

90° Modular end mills with T-FLEXTEC adaptation & unique four high positive helical cutting edges of double-sided 4NKT 14 inserts & high ramping capability

Additional information

Weight	0.3100 kg
Dimensions
barcode

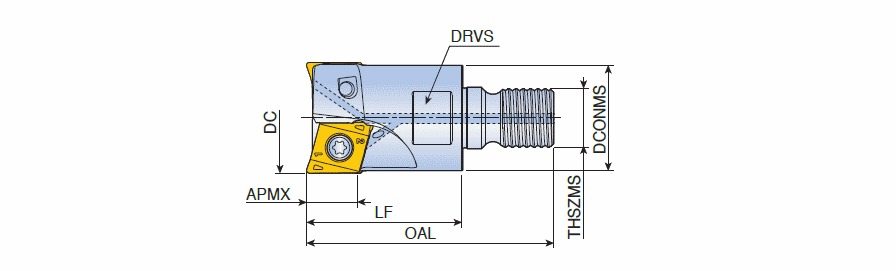

Additional Information	Cutting Diameter (DC/DCX): 32 mm Master Insert Identification (MIID): 4NKT 140708R-M Cutting Diameter (DC): 32 mm Body Material: Steel Cutting Item Count (CICT): 2 Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Depth of Cut Maximum (APMX): 13.8 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 29 mm Unit: M Overall Length (OAL): 13.8 mm
