Taegutec 4N TE90-312-S08-04

Product Code: 6320572

$491.50$446.82 Ex. GST

Product Code: 6320572 SKU 6320572 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

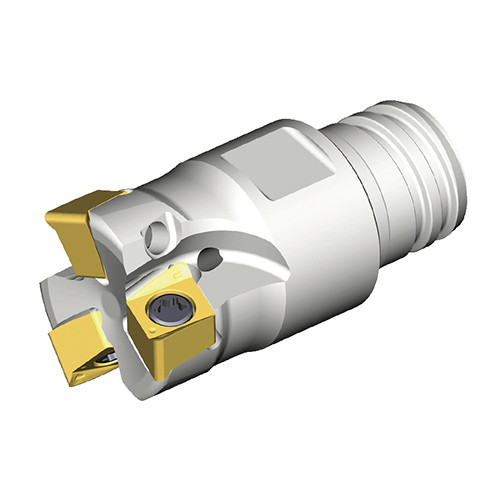

90° Modular end mills with MAXIRUSH adaptation & unique four high positive helical cutting edges of double-sided 4NKT 04 inserts and high ramping capability

Additional information

Weight	0.0640 kg
Dimensions
barcode

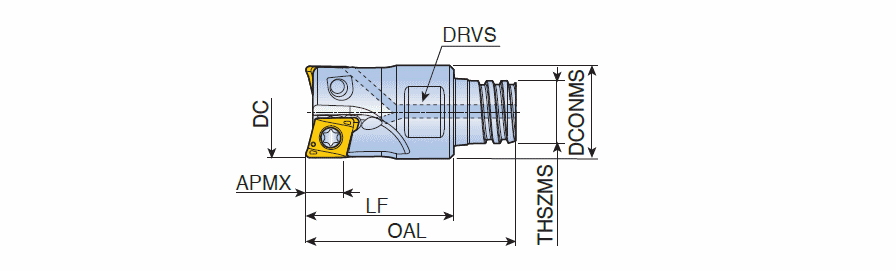

Additional Information	Cutting Diameter (DC/DCX): 12 mm Connection Diameter Machine Side (DCONMS): 11.5 mm Cutting Diameter (DC): 12 mm Master Insert Identification (MIID): 4NKT 040204R-M Cutting Item Count (CICT): 3 Functional Length (LF): 16 mm Depth of Cut Maximum (APMX): 3.5 mm Measurement Type: Metric Overall Length (OAL): 23.5 mm Body Material: Steel Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Unit: M
