Taegutec 4N TE90-316-16-04

Product Code: 6187379

$499.02$453.65 Ex. GST

Product Code: 6187379 SKU 6187379 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

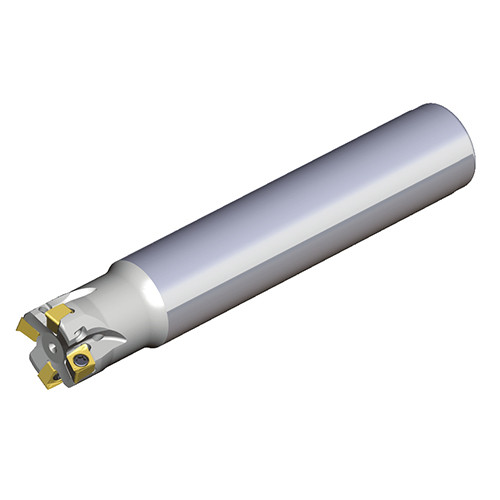

90° End mills with unique four high positive helical cutting edges of double-sided 4NKT 04 inserts and high ramping capability

Weight	0.1700 kg
Dimensions
barcode

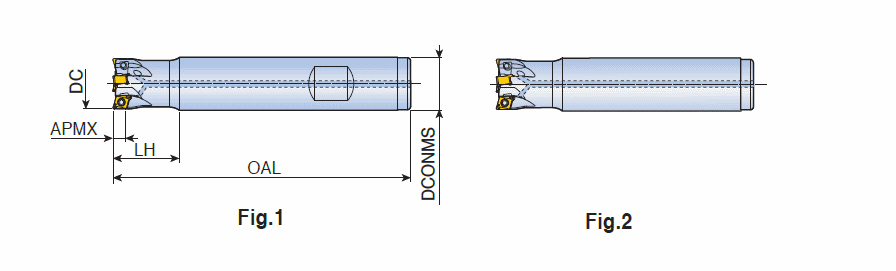

Additional Information	Cutting Diameter (DC/DCX): 16 mm Connection Diameter Machine Side (DCONMS): 16 mm Cutting Diameter (DC): 16 mm Master Insert Identification (MIID): 4NKT 040204R-M Cutting Item Count (CICT): 3 Head Length (LH): 20 mm Depth of Cut Maximum (APMX): 3.5 mm Measurement Type: Metric Overall Length (OAL): 90 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining
