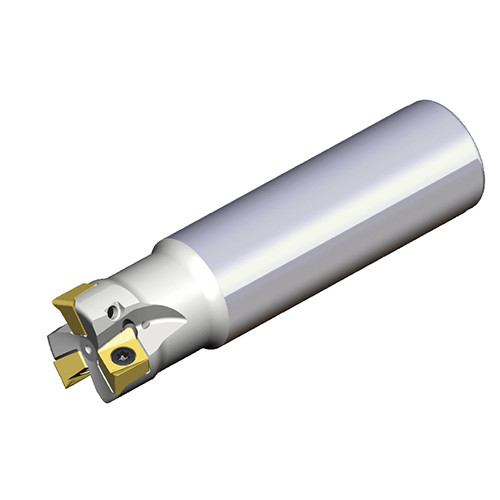

Taegutec 4N TE90-325-W25-09

Product Code: 6170122

$598.19$543.81 Ex. GST

Product Code: 6170122 SKU 6170122 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

90° End mills with unique four high positive helical cutting edges of double-sided 4NK(H)T 09 inserts and high ramping capability

Weight	0.3950 kg
Dimensions
barcode

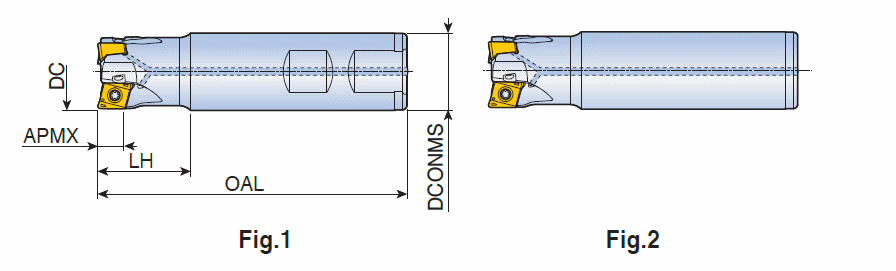

Additional Information	Cutting Diameter (DC/DCX): 25 mm Connection Diameter Machine Side (DCONMS): 25 mm Cutting Diameter (DC): 25 mm Master Insert Identification (MIID): 4NKT 090408R-M Cutting Item Count (CICT): 3 Head Length (LH): 30 mm Depth of Cut Maximum (APMX): 8 mm Measurement Type: Metric Overall Length (OAL): 100 mm Body Material: Steel Shank Type: Weldon Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining
