Taegutec 4N TE90-332-M16-11

Product Code: 6187364

$729.95$663.59 Ex. GST

Product Code: 6187364 SKU 6187364 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

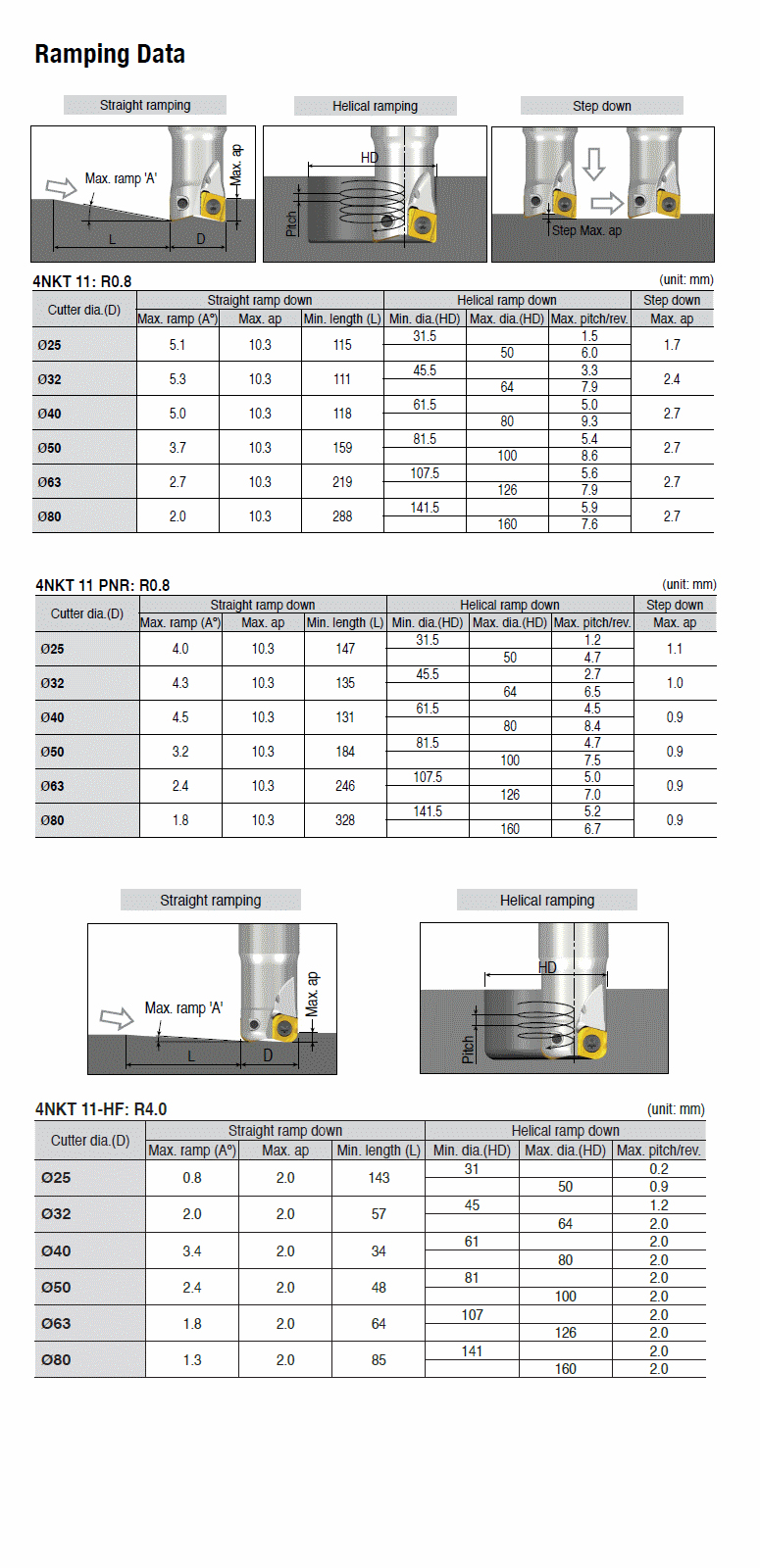

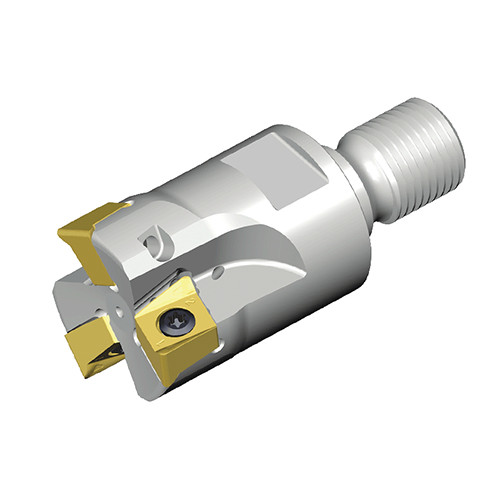

90° Modular end mills with T-FLEXTEC adaptation & unique four high positive helical cutting edges of double-sided 4NKT 11 inserts & high ramping capability

Additional information

Weight	0.3150 kg
Dimensions
barcode

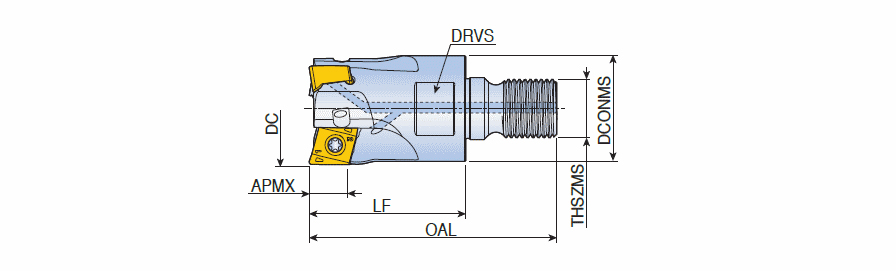

Additional Information	Cutting Diameter (DC/DCX): 32 mm Connection Diameter Machine Side (DCONMS): 29 mm Cutting Diameter (DC): 32 mm Master Insert Identification (MIID): 4NKT 110608R-M Cutting Item Count (CICT): 3 Functional Length (LF): 43 mm Depth of Cut Maximum (APMX): 10.5 mm Measurement Type: Metric Overall Length (OAL): 68 mm Body Material: Steel Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Unit: M
