Taegutec 4N TE90-332-W32-11

Product Code: 6178133

$660.59$600.54 Ex. GST

Product Code: 6178133 SKU 6178133 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

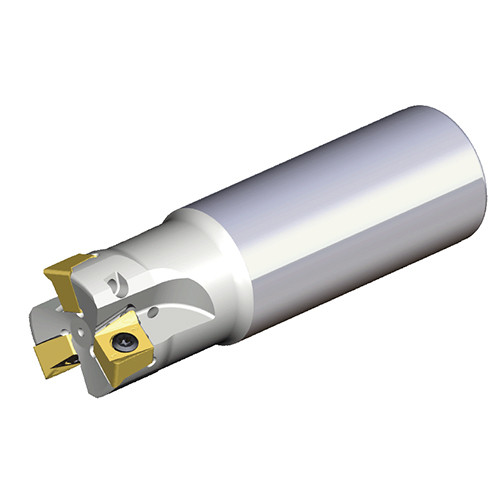

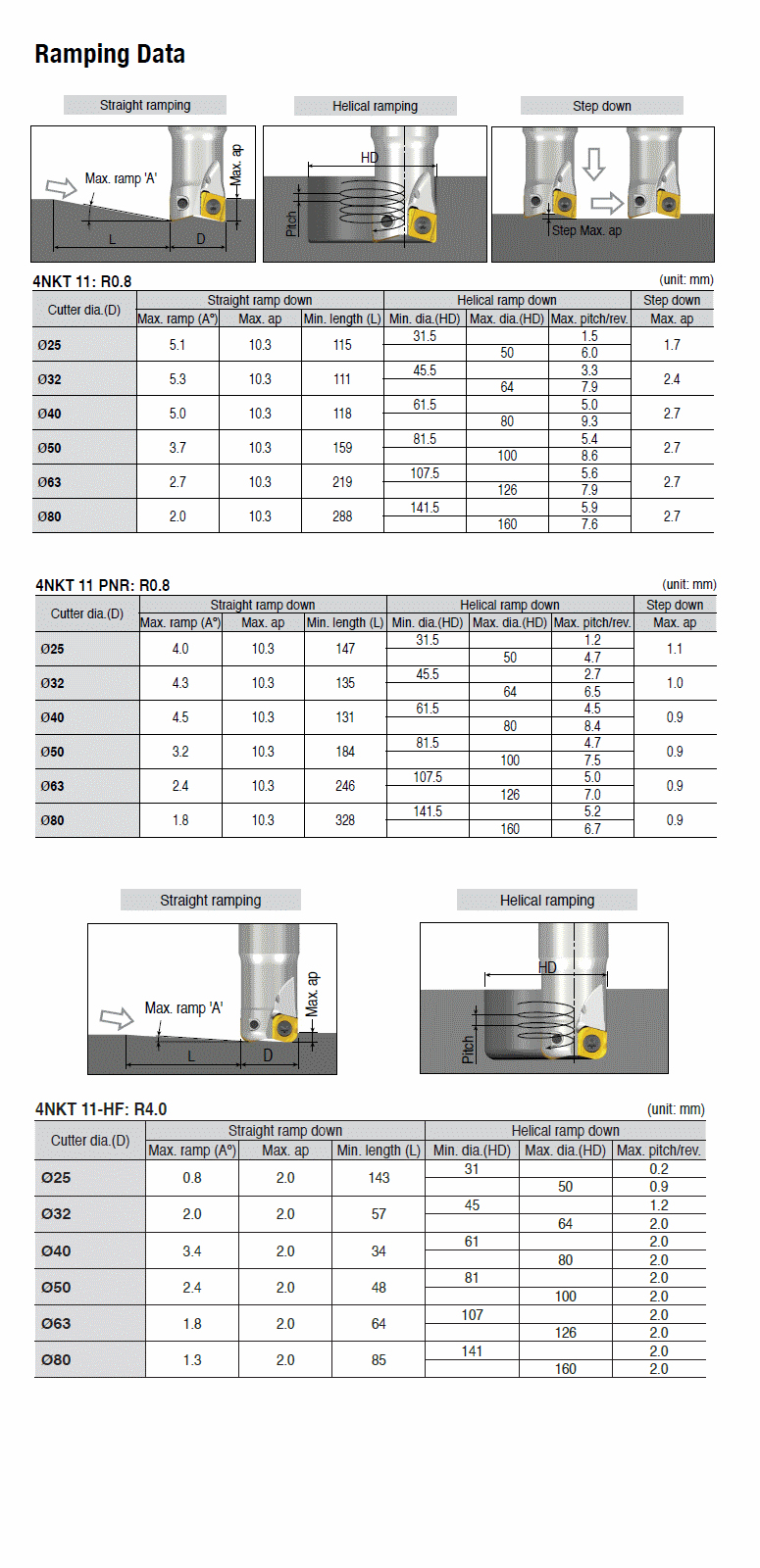

90° End mills with unique four high positive helical cutting edges of double-sided 4NKT 11 inserts & high ramping capability

Weight	0.6800 kg
Dimensions
barcode

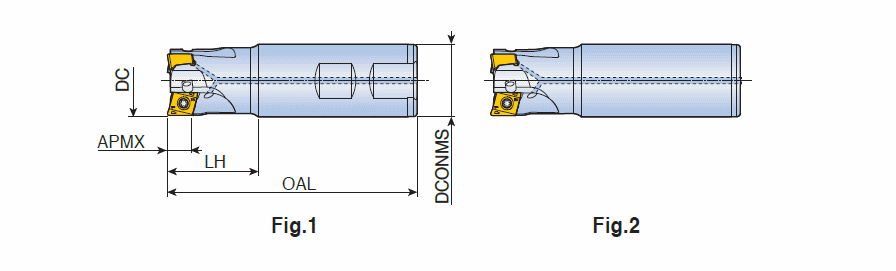

Additional Information	Cutting Diameter (DC/DCX): 32 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 32 mm Master Insert Identification (MIID): 4NKT 110608R-M Cutting Item Count (CICT): 3 Head Length (LH): 40 mm Depth of Cut Maximum (APMX): 10.5 mm Measurement Type: Metric Overall Length (OAL): 110 mm Body Material: Steel Shank Type: Weldon Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining
