Taegutec 4N TE90-416-S10-04

Product Code: 6320573

$538.92$489.93 Ex. GST

Product Code: 6320573 SKU 6320573 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

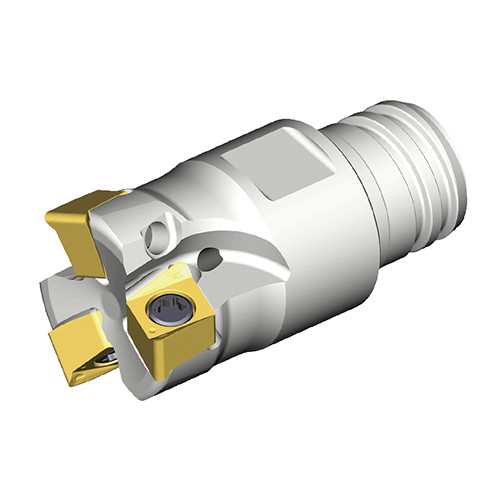

90° Modular end mills with MAXIRUSH adaptation & unique four high positive helical cutting edges of double-sided 4NKT 04 inserts and high ramping capability

Additional information

Weight	0.0800 kg
Dimensions
barcode

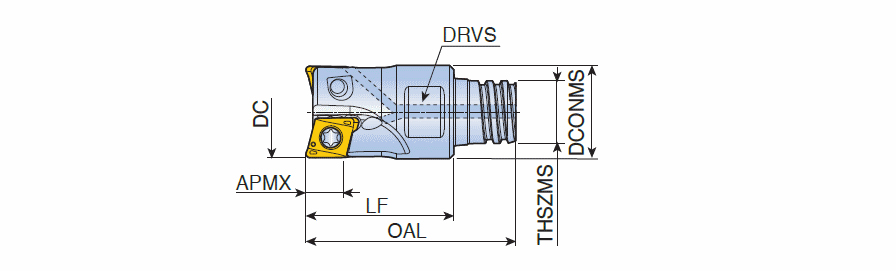

Additional Information	Cutting Diameter (DC/DCX): 16 mm Connection Diameter Machine Side (DCONMS): 15.2 mm Cutting Diameter (DC): 16 mm Master Insert Identification (MIID): 4NKT 040204R-M Cutting Item Count (CICT): 4 Functional Length (LF): 20 mm Depth of Cut Maximum (APMX): 3.5 mm Measurement Type: Metric Overall Length (OAL): 31.3 mm Body Material: Steel Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Unit: M
