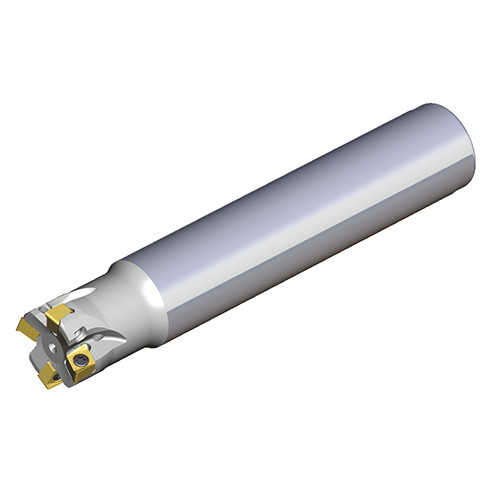

Taegutec 4N TE90-416-W16-04

Description

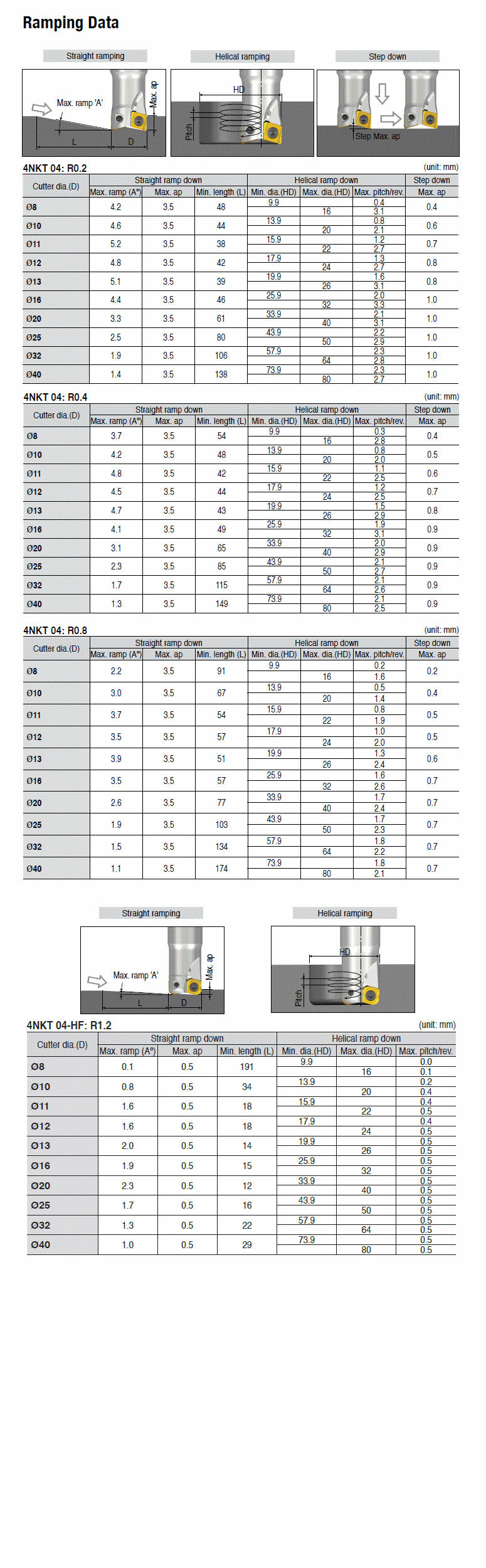

90° End mills with unique four high positive helical cutting edges of double-sided 4NKT 04 inserts and high ramping capability

Weight	0.1800 kg
Dimensions
barcode

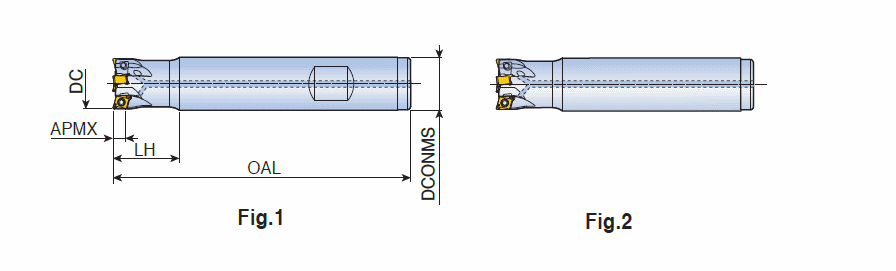

Additional Information	Cutting Diameter (DC/DCX): 16 mm Connection Diameter Machine Side (DCONMS): 16 mm Cutting Diameter (DC): 16 mm Master Insert Identification (MIID): 4NKT 040204R-M Cutting Item Count (CICT): 4 Head Length (LH): 20 mm Depth of Cut Maximum (APMX): 3.5 mm Measurement Type: Metric Overall Length (OAL): 90 mm Body Material: Steel Shank Type: Weldon Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining
