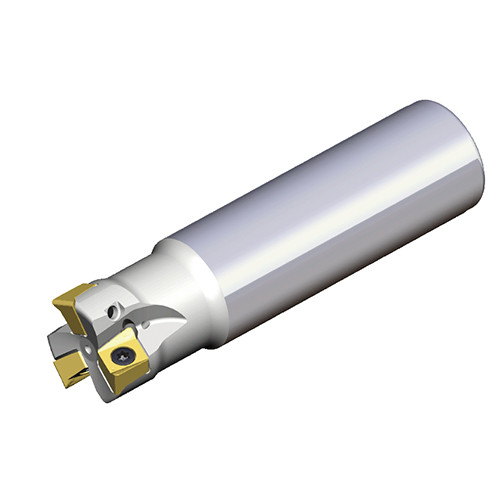

Taegutec 4N TE90-440-W32-09

Product Code: 6176004

$740.95$673.59 Ex. GST

Product Code: 6176004 SKU 6176004 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Taegutec 4N TE90-440-W32-09

Taegutec 4N TE90-440-W32-09 - Image 2

Taegutec 4N TE90-440-W32-09 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° End mills with unique four high positive helical cutting edges of double-sided 4NK(H)T 09 inserts and high ramping capability

Additional information

Weight	0.7800 kg
Dimensions
barcode

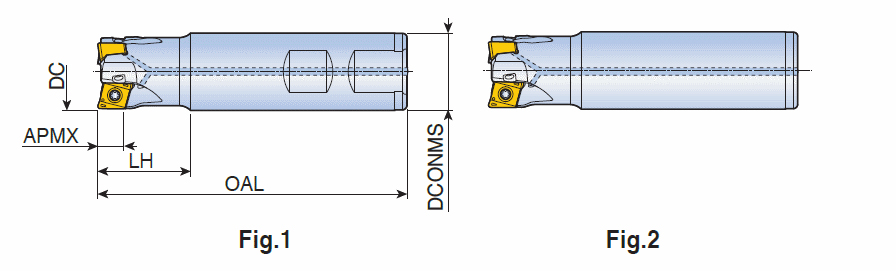

Additional Information	Cutting Diameter (DC/DCX): 40 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 40 mm Master Insert Identification (MIID): 4NKT 090408R-M Cutting Item Count (CICT): 4 Head Length (LH): 40 mm Depth of Cut Maximum (APMX): 8 mm Measurement Type: Metric Overall Length (OAL): 115 mm Body Material: Steel Shank Type: Weldon Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining

Brand

Taegutec
