Taegutec 4N TE90-535-M16-06

Product Code: 6165460

$800.58$727.80 Ex. GST

Product Code: 6165460 SKU 6165460 Categories , ,
Taegutec 4N TE90-535-M16-06
Taegutec 4N TE90-535-M16-06 - Image 2
Taegutec 4N TE90-535-M16-06 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

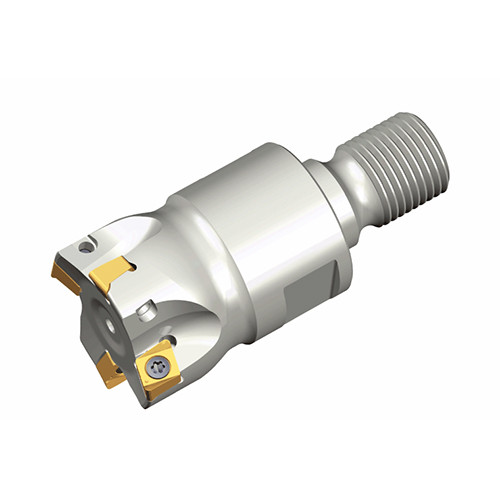

90° Modular end mills with T-FLEXTEC adaptation & unique four high positive helical cutting edges of double-sided 4NK(H)T 06 inserts & high ramping capability

Additional information

Weight 0.3150 kg
Dimensions
barcode
Additional Information

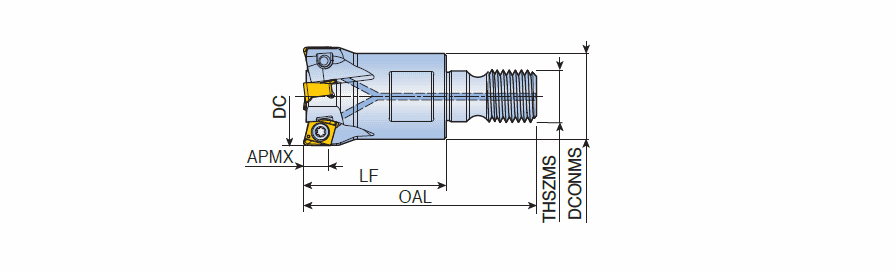

Cutting Diameter (DC/DCX): 35 mm
Master Insert Identification (MIID): 4NKT 060308R-M
Cutting Diameter (DC): 35 mm
Head Length (LH): 43 mm
Cutting Item Count (CICT): 5
Connection Thread Nominal Size Machine Side (THSZMS): M16
Depth of Cut Maximum (APMX): 6 mm
Measurement Type: Metric
Overall Length (OAL): 68 mm
Body Material: Steel
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Unit: M

Brand

Taegutec
