Taegutec 4N TE90-725-M12-04

Product Code: 6187388

$726.97$660.88 Ex. GST

Product Code: 6187388 SKU 6187388 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

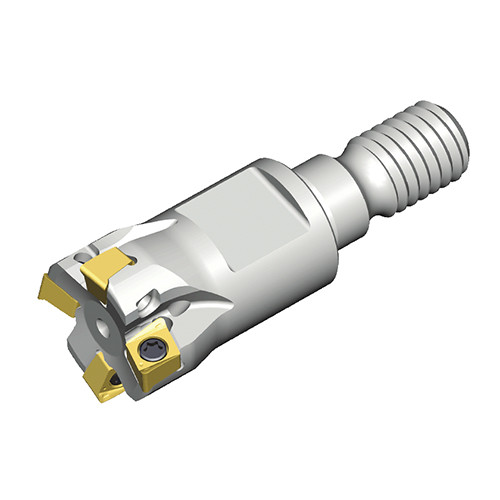

90° Modular end mills with T-FLEXTEC adaptation & unique four high positive helical cutting edges of double-sided 4NKT 04 inserts & high ramping capability

Additional information

Weight	0.1500 kg
Dimensions
barcode

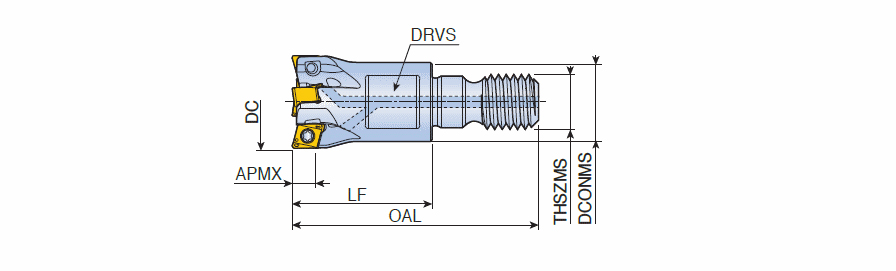

Additional Information	Cutting Diameter (DC/DCX): 25 mm Connection Diameter Machine Side (DCONMS): 21 mm Cutting Diameter (DC): 25 mm Master Insert Identification (MIID): 4NKT 040204R-M Cutting Item Count (CICT): 7 Functional Length (LF): 27 mm Depth of Cut Maximum (APMX): 3.5 mm Measurement Type: Metric Overall Length (OAL): 49 mm Body Material: Steel Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Unit: M
