Taegutec 4N TF90-540-16R-09

Product Code: 6176011

$745.82$678.02 Ex. GST

Product Code: 6176011 SKU 6176011 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

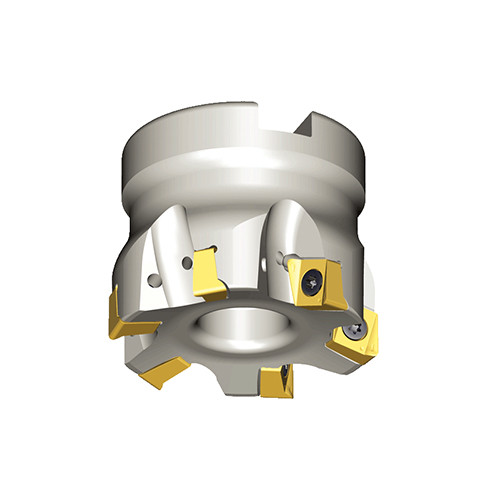

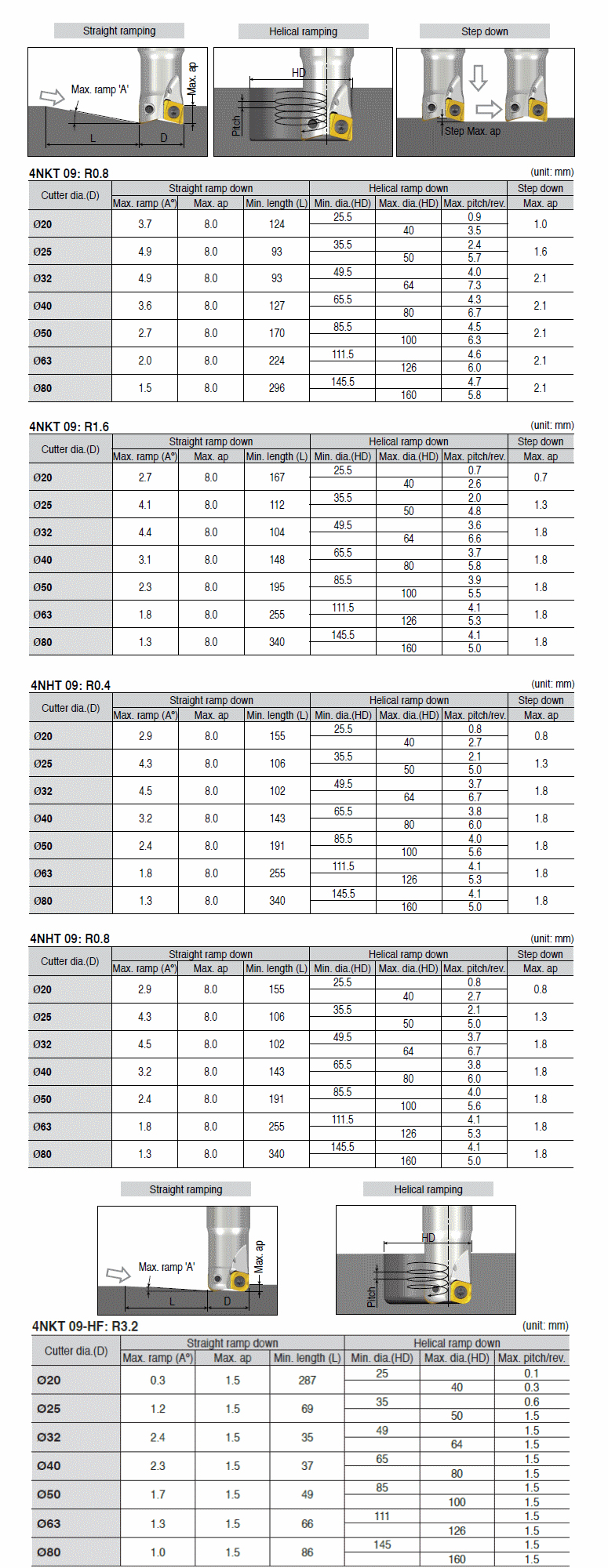

90° Face mills with unique four high positive helical cutting edges of double-sided 4NK(H)T 09 inserts & high ramping capability

Weight	0.8450 kg
Dimensions
barcode

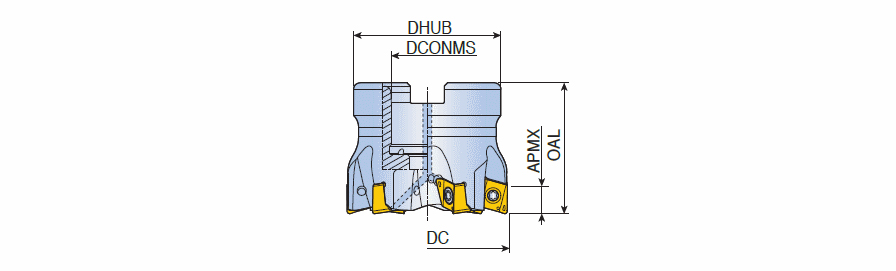

Additional Information	Cutting Diameter (DC/DCX): 40 mm Hub Diameter (DHUB): 38 mm Cutting Diameter (DC): 40 mm Master Insert Identification (MIID): 4NKT 090408R-M Cutting Item Count (CICT): 5 Body Material: Steel Depth of Cut Maximum (APMX): 8 mm Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Connection Diameter Machine Side (DCONMS): 16 mm Measurement Type: Metric Overall Length (OAL): 8 mm Unit: M
