Taegutec 4N TF90-580-27R-14

Product Code: 6187353

$1,224.56$1,113.24 Ex. GST

Product Code: 6187353 SKU 6187353 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

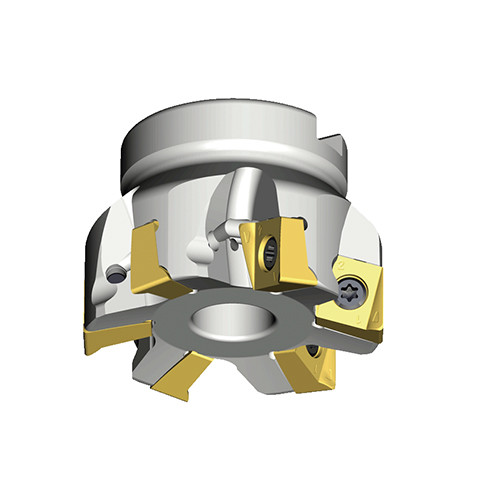

90° Face mills with unique four high positive helical cutting edges of double-sided 4NKT 14 inserts and high ramping capability

Weight	1.5050 kg
Dimensions
barcode

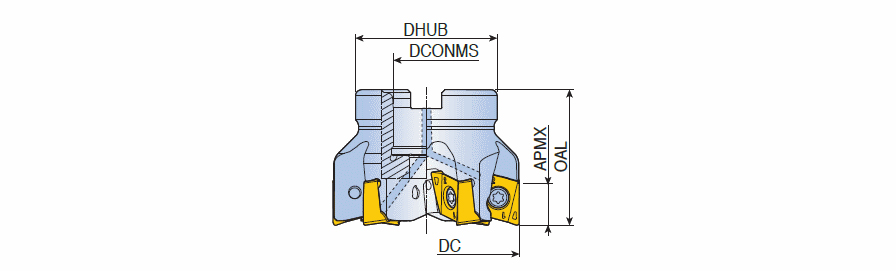

Additional Information	Cutting Diameter (DC/DCX): 80 mm Hub Diameter (DHUB): 58 mm Cutting Diameter (DC): 80 mm Master Insert Identification (MIID): 4NKT 140708R-M Cutting Item Count (CICT): 5 Body Material: Steel Depth of Cut Maximum (APMX): 13.8 mm Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Connection Diameter Machine Side (DCONMS): 27 mm Measurement Type: Metric Overall Length (OAL): 13.8 mm Unit: M
