Taegutec 4N TF90-663-22R-14

Description

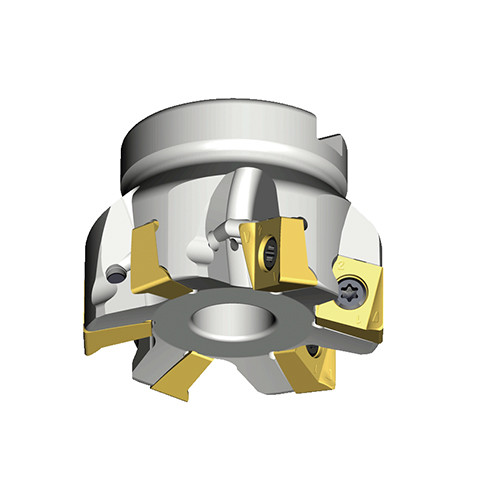

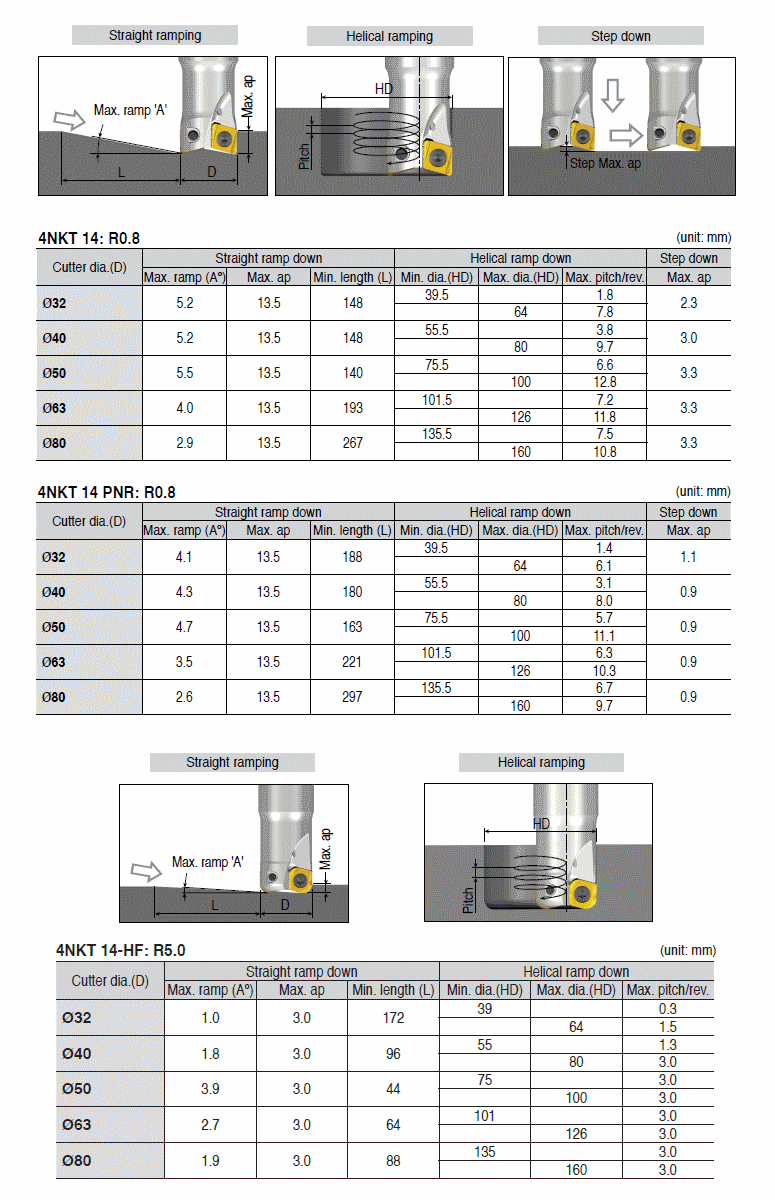

90° Face mills with unique four high positive helical cutting edges of double-sided 4NKT 14 inserts and high ramping capability

Weight	1.0850 kg
Dimensions
barcode

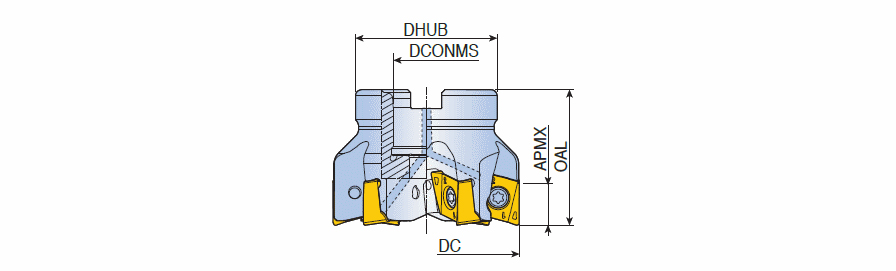

Additional Information	Cutting Diameter (DC/DCX): 63 mm Hub Diameter (DHUB): 47 mm Cutting Diameter (DC): 63 mm Master Insert Identification (MIID): 4NKT 140708R-M Cutting Item Count (CICT): 6 Body Material: Steel Depth of Cut Maximum (APMX): 13.8 mm Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Connection Diameter Machine Side (DCONMS): 22 mm Measurement Type: Metric Overall Length (OAL): 13.8 mm Unit: M
