Taegutec 4N TF90-780-27R-14

Product Code: 6187354

$1,330.97$1,209.97 Ex. GST

Product Code: 6187354 SKU 6187354 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

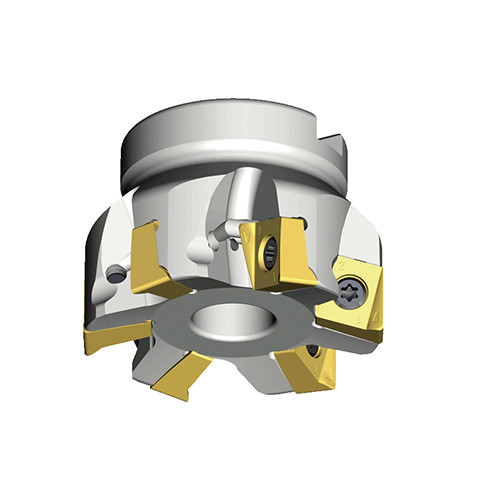

Taegutec 4N TF90-780-27R-14

Taegutec 4N TF90-780-27R-14 - Image 2

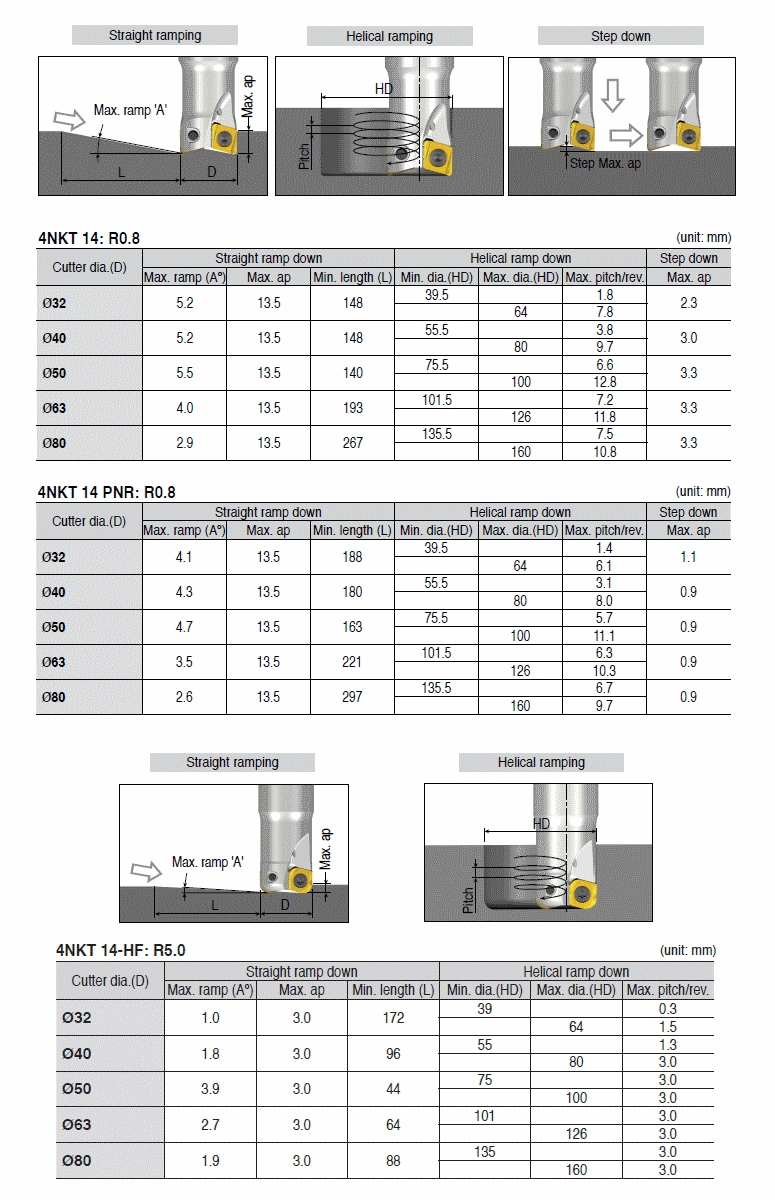

Taegutec 4N TF90-780-27R-14 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° Face mills with unique four high positive helical cutting edges of double-sided 4NKT 14 inserts and high ramping capability

Additional information

Weight	1.5250 kg
Dimensions
barcode

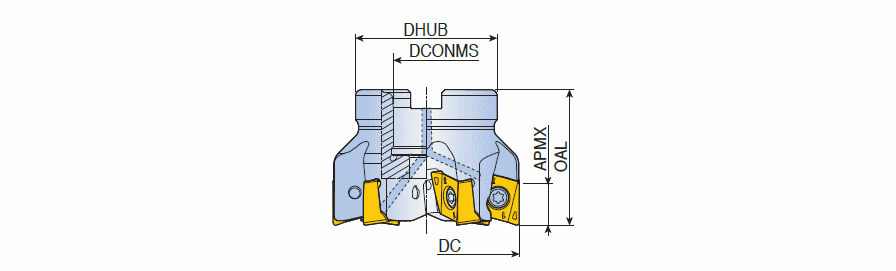

Additional Information	Cutting Diameter (DC/DCX): 80 mm Hub Diameter (DHUB): 58 mm Cutting Diameter (DC): 80 mm Master Insert Identification (MIID): 4NKT 140708R-M Cutting Item Count (CICT): 7 Body Material: Steel Depth of Cut Maximum (APMX): 13.8 mm Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Connection Diameter Machine Side (DCONMS): 27 mm Measurement Type: Metric Overall Length (OAL): 13.8 mm Unit: M

Brand

Taegutec
