Taegutec 4N TF90-832-16R-04

Product Code: 6187391

$762.93$693.57 Ex. GST

Product Code: 6187391 SKU 6187391 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

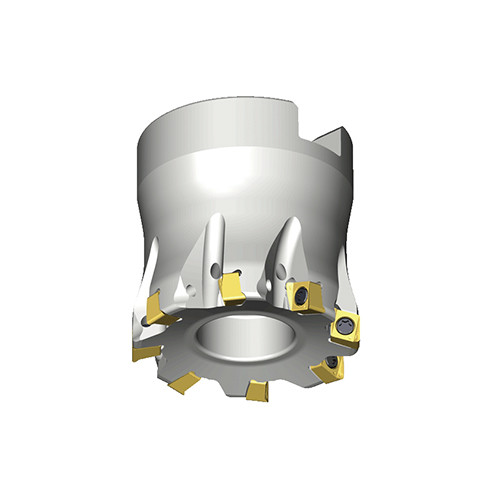

Taegutec 4N TF90-832-16R-04

Taegutec 4N TF90-832-16R-04 - Image 2

Taegutec 4N TF90-832-16R-04 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° Face mills with unique four high positive helical cutting edges of double-sided 4NKT 04 inserts & high ramping capability

Additional information

Weight	0.6900 kg
Dimensions
barcode

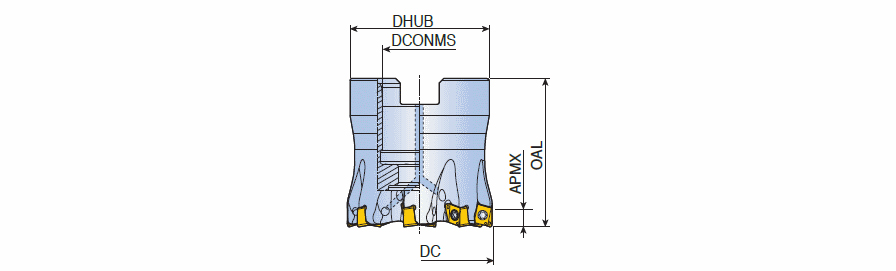

Additional Information	Cutting Diameter (DC/DCX): 32 mm Hub Diameter (DHUB): 30 mm Cutting Diameter (DC): 32 mm Master Insert Identification (MIID): 4NKT 040204R-M Cutting Item Count (CICT): 8 Body Material: Steel Depth of Cut Maximum (APMX): 3.5 mm Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Connection Diameter Machine Side (DCONMS): 16 mm Measurement Type: Metric Overall Length (OAL): 3.5 mm Unit: M

Brand

Taegutec
