Taegutec 4N TF90-980-27R-09

Product Code: 6176013

$1,378.23$1,252.94 Ex. GST

Product Code: 6176013 SKU 6176013 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

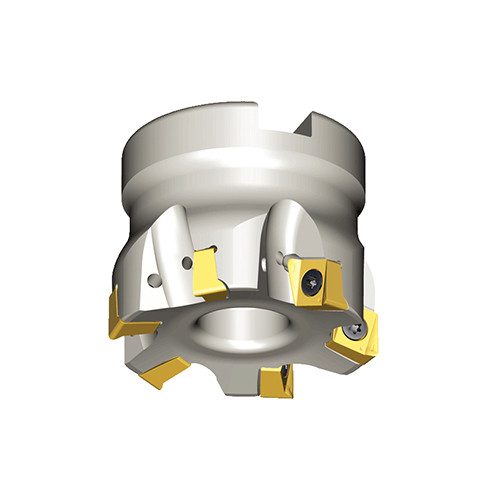

Taegutec 4N TF90-980-27R-09

Taegutec 4N TF90-980-27R-09 - Image 2

Taegutec 4N TF90-980-27R-09 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° Face mills with unique four high positive helical cutting edges of double-sided 4NK(H)T 09 inserts & high ramping capability

Additional information

Weight	1.6400 kg
Dimensions
barcode

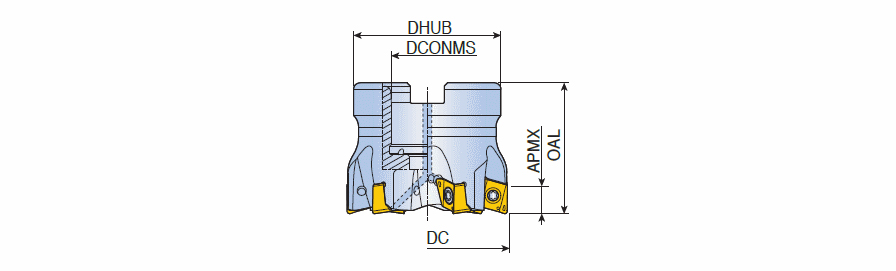

Additional Information	Cutting Diameter (DC/DCX): 80 mm Hub Diameter (DHUB): 58 mm Cutting Diameter (DC): 80 mm Master Insert Identification (MIID): 4NKT 090408R-M Cutting Item Count (CICT): 9 Body Material: Steel Depth of Cut Maximum (APMX): 8 mm Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Connection Diameter Machine Side (DCONMS): 27 mm Measurement Type: Metric Overall Length (OAL): 8 mm Unit: M

Brand

Taegutec
